NAVEE UT5 Max (EU Version Max. 25 km/h)
Max. Power 2400 W
Dubbels hydrauliska fjädringar
Trippelt bromssystem
Max. klutvinkel 39 %
Max. räckvidd upp till 100 km
Snabb laddning på 2 timmar med 10-A-laddare
Baspaket
Valfria Tillbehör
Tillgänglig separat
NAVEE UT5 Max (EU Version Max. 25 km/h)€949,00
Totalt
€949,00
NAVEE UT5 Max (EU Version Max. 25 km/h)
NAVEE UT5 Max (EU Version Max. 25 km/h)
REA-pris€949,00
Pris€1.129,00
Up to
0
km Range
W
Power
%
Max. Incline
Front & Rear HydraulicSuspension
12"self-healing Tubeless Tires
TÜV Certified Reliability and High Shock Absorption
Aerodynamic Body Design
Aerodynamic Body Design with front and rear open-throughdesign
that allows air to pass through more freely, reducing airflow
disruption for a smoother riding experience.

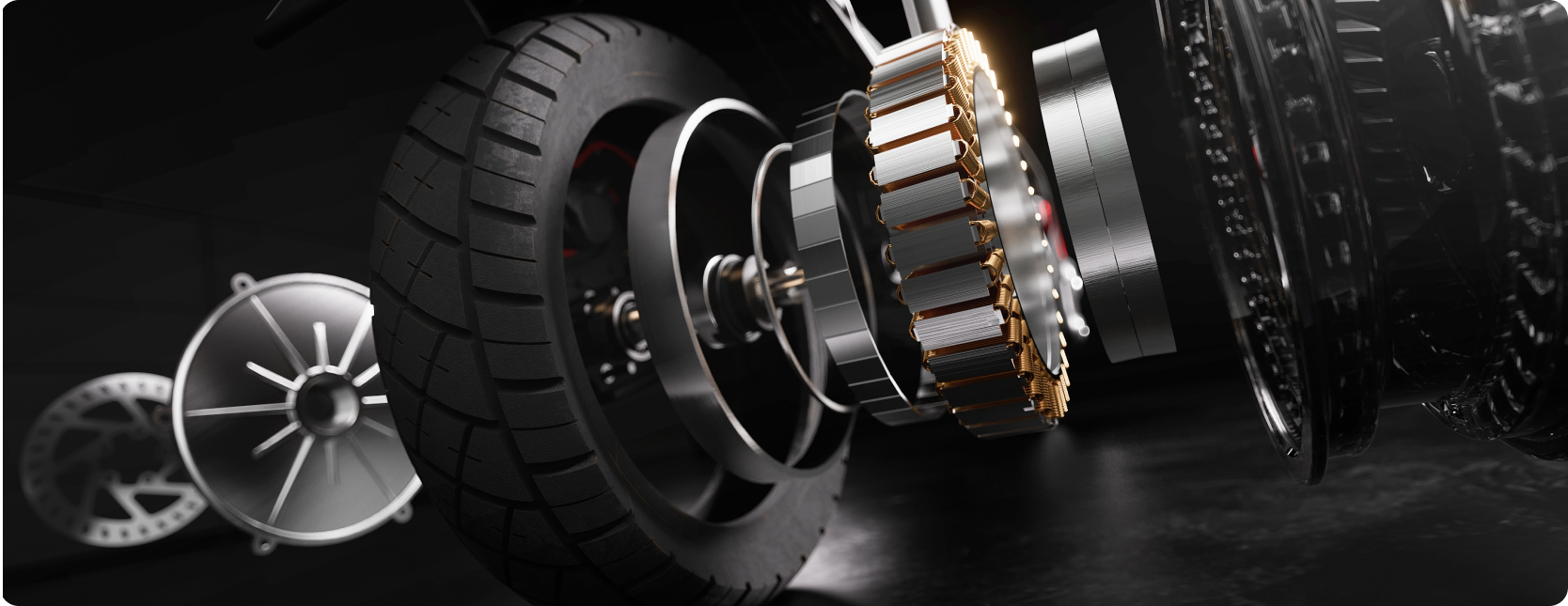

Peak Motor for Extreme Thrill
From city streets to rugged trails and even the racetrack, UT5 Max provides unstoppable power and control.
2400W
Power
39%
Max. Incline
Consistent Power, Even at Low Battery
Even at 5% battery, the UT5 Max maintains a steady speed of up to 25 km/h.
*Test Conditions: Tested with a new, fully charged battery, a 75+5kg (165 bs) load, an ambient temperature of 25+ 5°C (77 +9*F)
wind speed s 3 m/s, and atmospheric pressure of 86-106 kPa, on aflat, paved surface at full throttle until the battery is fully depleted

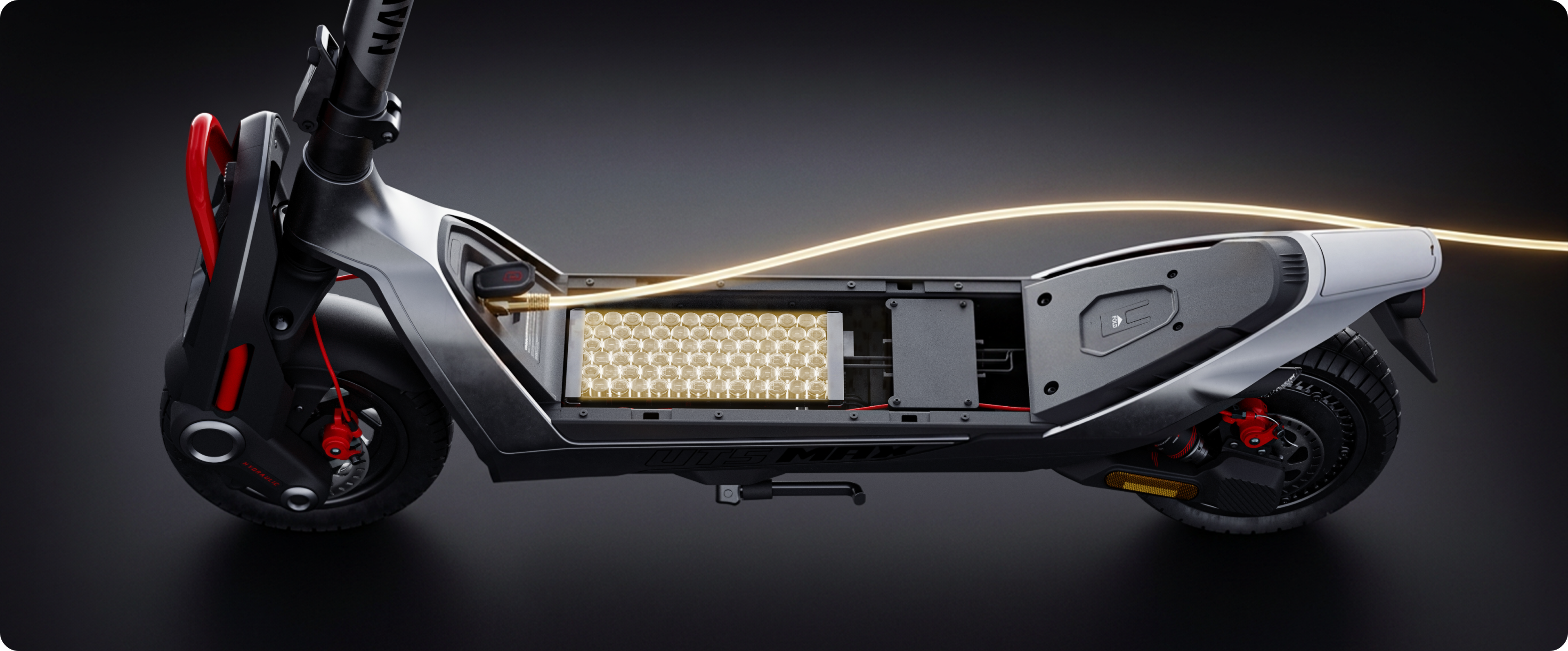

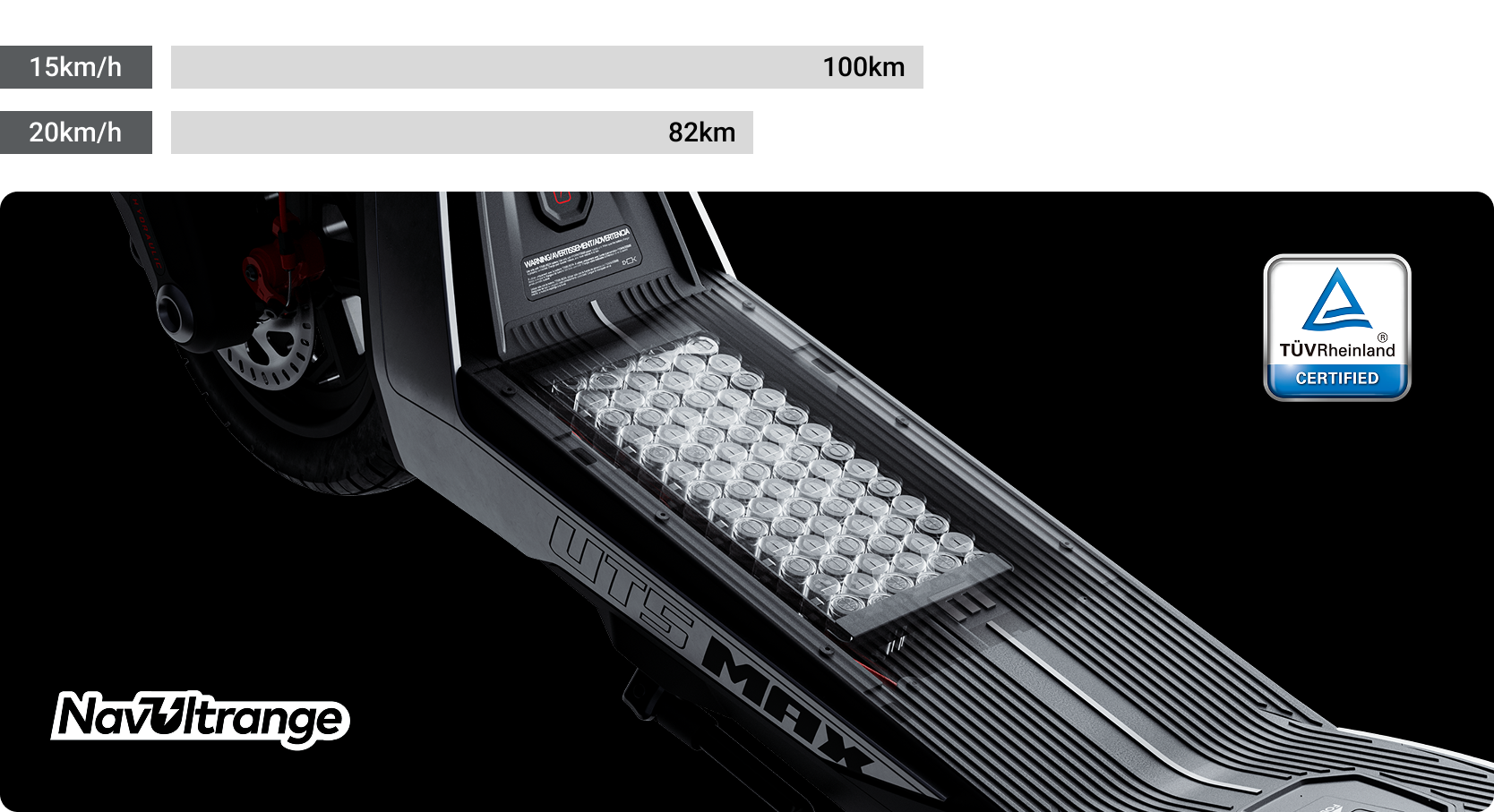

TÜV Rheinland-Certified Range
NAVEE's self-developed NavUltraRange™ technology combinees optimized motor output,
intelligent energy management, and reduced system resistance to maxinnize riding
efficiency. Powered by a 716Wh high-capacity battery, the UT5 Max delivers powerful
performance and extended range.
*TÜV Rheinland certification applies to the UT5 Max DE model, whiclis based on the same platform as the UT5 Max
*Range at 15 km/h: Tested with a fully charged new battery, a 75+5kg (16:5+11 lbs) load, an ambient temperature of 25 + 5°C (77+9F), wind speed ≤3 m/s, and atmospheric pressure of 86-106 kPa, on a flat, paved surface at full throttle until the battery is fully depleted
*Actual range may vary depending on load, temperature, road conditiions, speed, tire pressure, and riding habits.
Spend Less Time Charging, More Time Riding
2 Hours
Ready for a Week of Commuting
10 Minutes
10 km More for the Journey Ahead

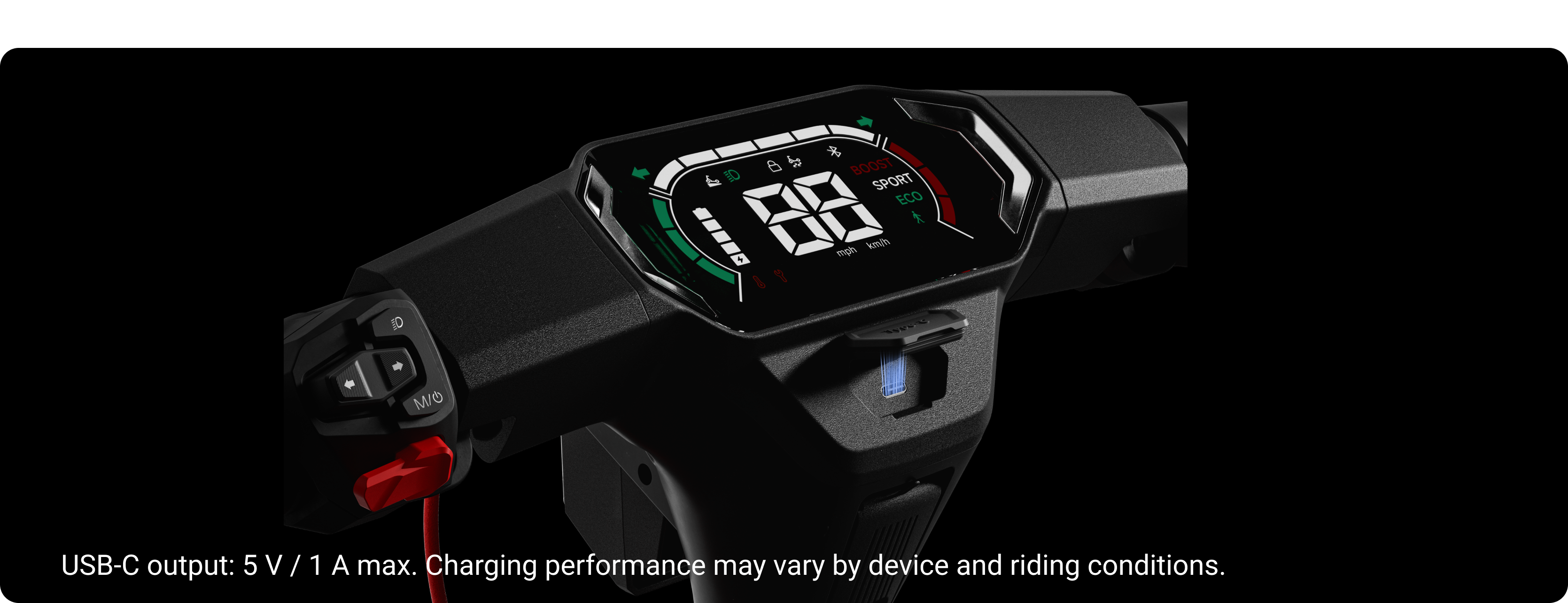

Built-in USB-C Charging
Keep your phone powered for navigation on longer rides.

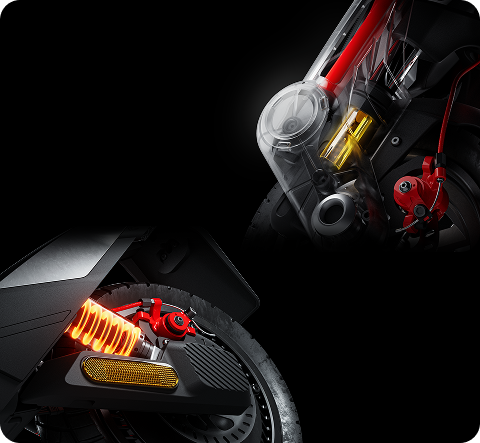

TÜV Rheinland-Certified Suspension
Dual Hydraulic Suspension Systemfor Smooth All-road Ride
Premium dual hydraulic suspension deliverssuperior shock absorption and ride comfort.

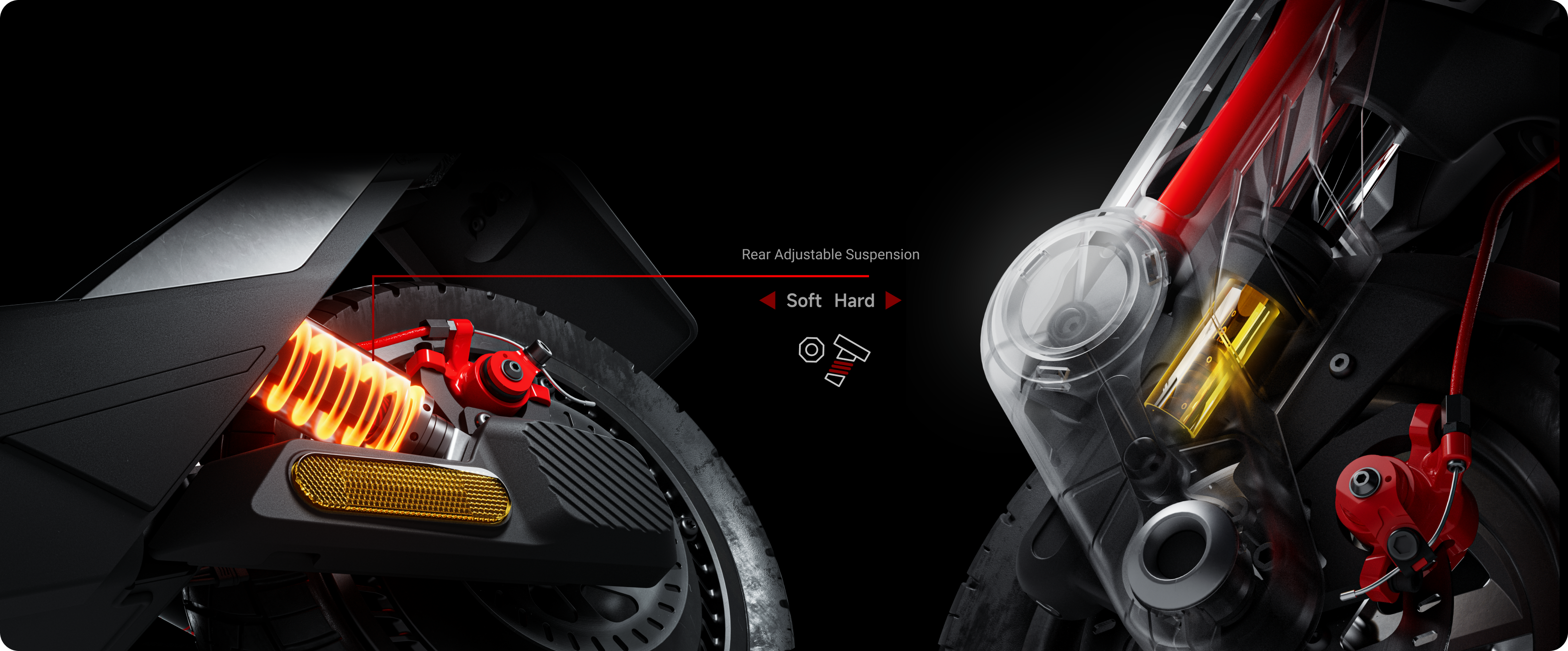

Adjustable Suspension for Discerning Riders
Turn harder for off-road control and reduced bottoming out.Switch to a softer setting for smooth city rides.

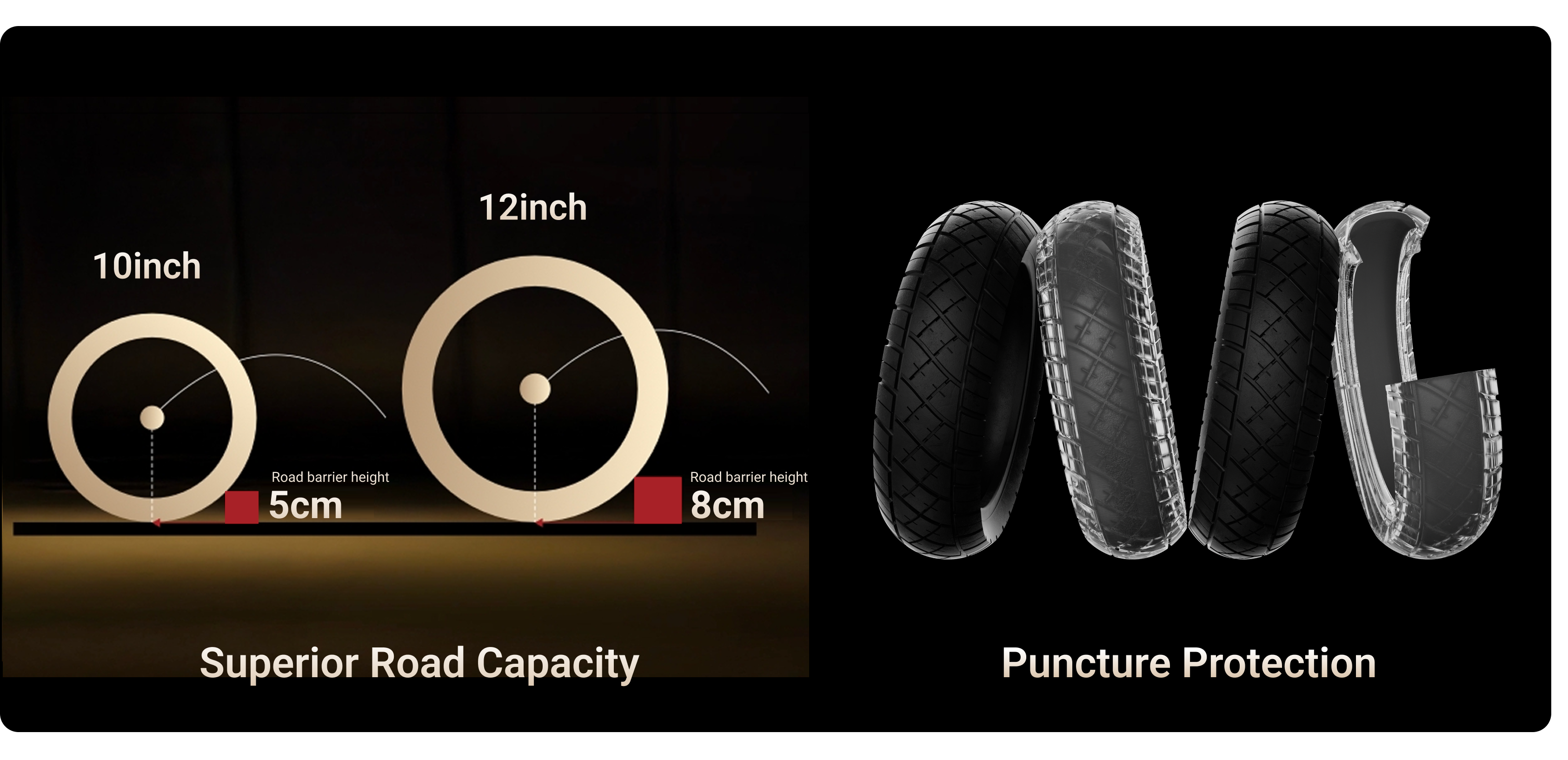

One Tire. All Terrain
Built for diverse terrains, the 12-inch self-sealing tubeless tirres deliver
greater stability, smoother obstacle clearance, and reliable punctture
resistance. An integrated self-sealing gel automatically seals punctures
up to 4 mm, minimizing maintenance for worry-free rides.

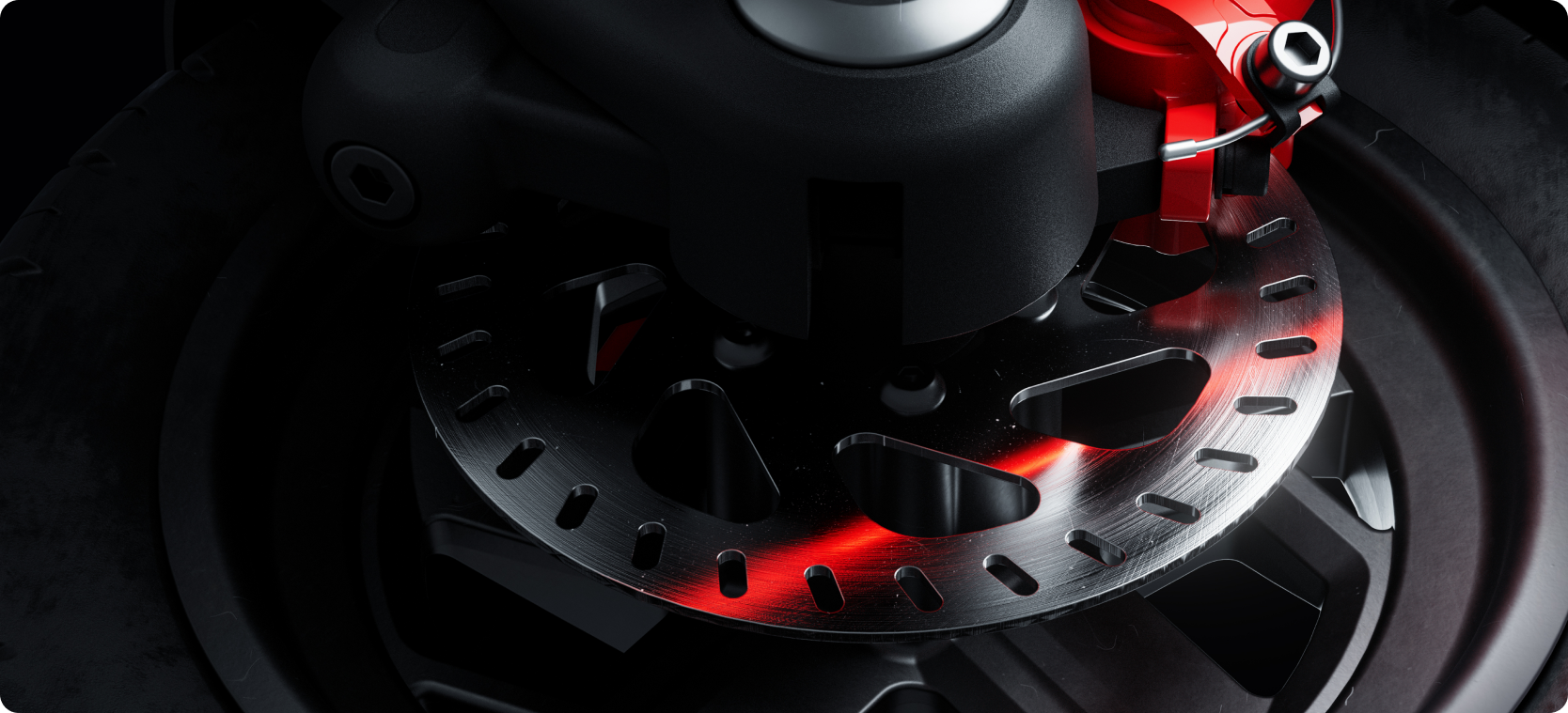

Confident Stops, Anywhere
With 130 mm front and rear disc brakes, UT5 Max ensures stable,
predictable braking from smooth roads to rough paths.

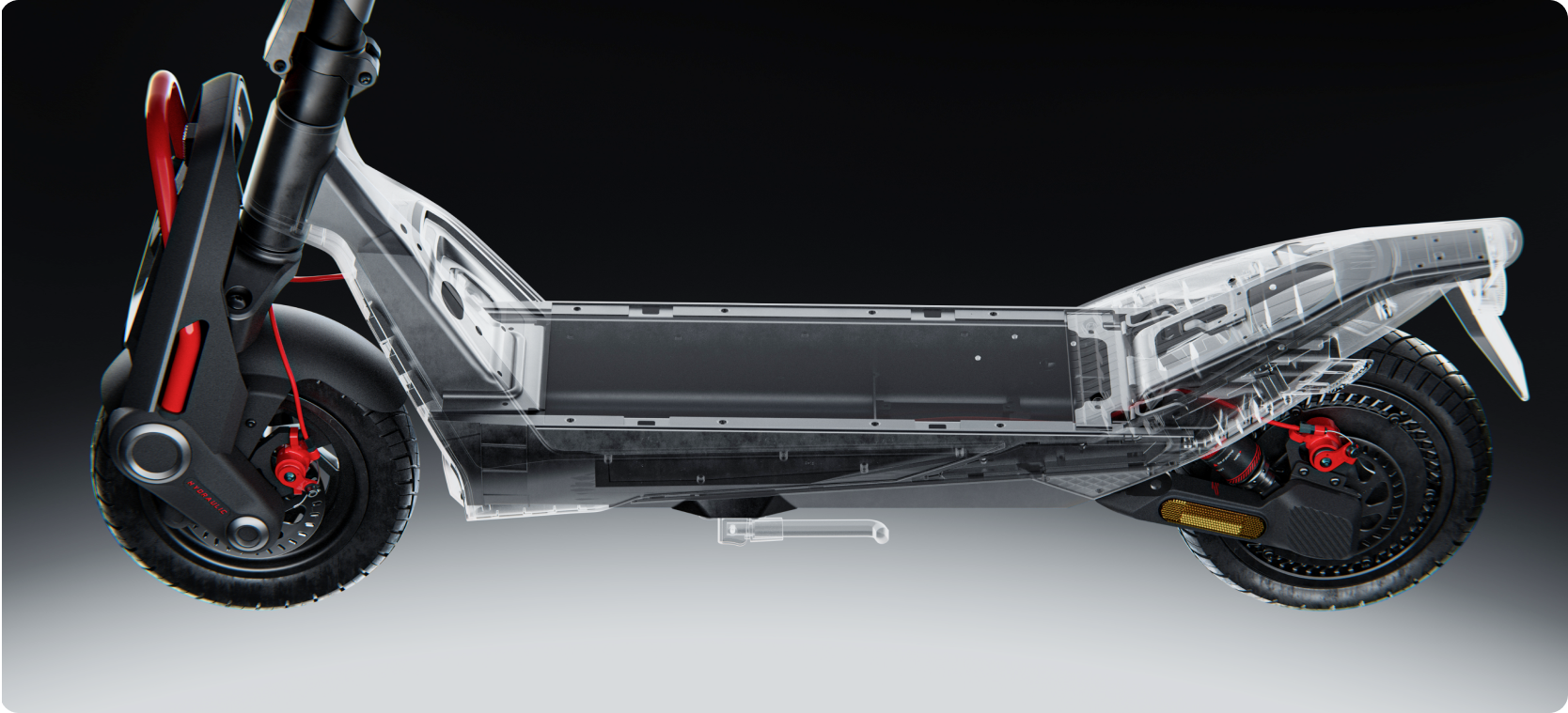

Refined Details, Amplified Ride
Automotive Grade
Steel Frame
150 kg
Max. Load
500,000+
Cycles Durability Testing
Lighting System
A complete lighting system with front, rear, and integrated turin signals provides 360°
visibility and enhanced safety, while meeting regulatory requirrements for road use

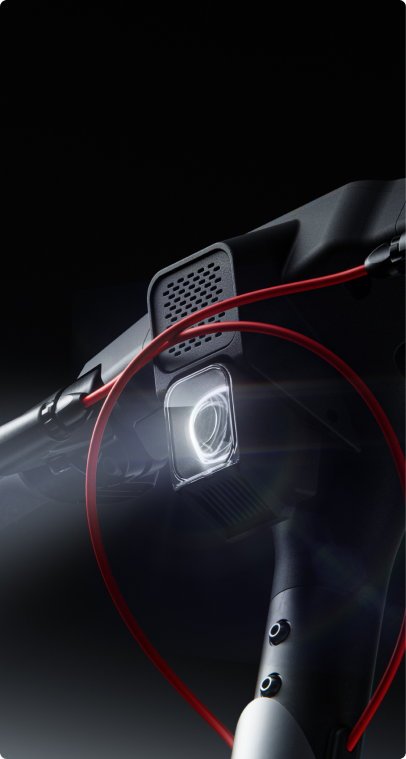

6W Auto-Sensing Headlight
36m Illumination Distance

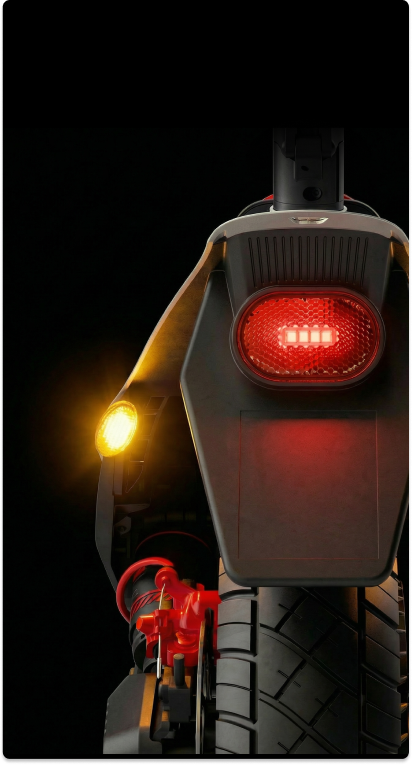

Rear Turn Signals

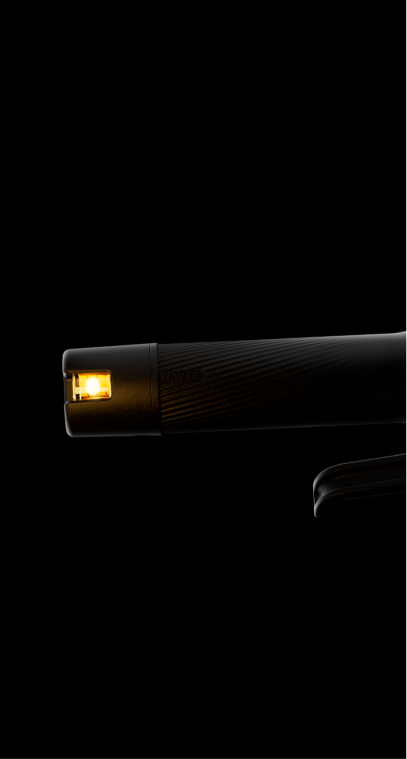

Front Turn Signals
What's in the Box
Navee UT5 Max
Charger
Screws
Allen Key
User Manual
Specifications
NAVEE UT5 Max (EU Version Max. 25 km/h)
ALLMÄNNA UPPGIFTER
Certifieringsmodell
UT5 Max
Max. Lastkapacitet
150 kg
Max. Klattgrad
39%
Fabriksinställd Maxhastighet
6 / 15 / 25 km/h
BATTERY
Batterispänning
46.8 V
Batterikapacitet
716.04 Wh
Battericelltyp
18650 (13s6p)
Cellkapacitet
15.3 Ah
Batterivikt
4200 g
PERFORMANCE
Nominell Effekt
700 W
Max. Effekt
2400 W
Räckvidd (vid 15 km/h)
100 km
Räckvidd (vid 20 km/h)
82 km
Räckvidd (vid 25 km/h)
65 km
LADDNING OCH FUNKTIONER
Laddningstid (Standard)
7 h
Laddningstid (Snabb)
2 h (med 10 A-laddare)
Vattenskyddsklass
IPX6
Bluetooth
Ja
Smart App
NAVEE App
Apple Hitta Min
Ja (iOS)
DIMENSIONSER OCH VIKT
Dimensioner (utvecklad)
1252 × 620 × 1358 mm
Dimensioner (vecklad)
1252 × 620 × 645 mm
Fotplattformsbredd
220 mm
Nettovikt
34 kg
Bruttovikt
40.5 kg
BREMSSYSTEM & HJULUPPHÄNGNING
Bromssystem
Framskivbroms + Bakskivbroms + EABS
Hjulupphängningssystem
Duala hydrauliska hjulupphängningar
BELYSNING & ÖVRIGT
Huvdlampa
Autoidentifierande 6 W
Bromslampa
2 W
Blinkljus
1.6W handtags- och bakre blinkljus
Display
3.5 LED-skärm
Find Your Perfect Model
NAVEE UT5 Max (EU Version Max. 25 km/h)
NAVEE XT5 Ultra (EU Version Max. 25 km/h)
NAVEE XT5 Pro (EU Version Max. 25 km/h)
Maxeffekt
2400 W-
2200 W
Batteri
46.8 V 716.04 Wh
46.8 V 899 Wh
46.8 V 596.7 Wh
Max räckvidd
100 km (vid 15 km/h)-
75 km (vid 15 km/h)
Max klättringsgrad
39%-
-
Däck
12-tums all-terrain tubolösa däck
12-tums terrängdäck utan innerdäck
12-tums all-terrain tubelessdäck
Upphängningssystem
Dubbel hydraulisk upphängning-
-
Bromssystem
Fram- och bakre skivbromsar + EABS
Fram- och bakre skivbromsar + EABS
Fram- och bakre skivbromsar + EABS
Max lastkapacitet
150 kg-
150 kg
Snabb laddning
Ja
Ja-
Nettovikt
34 kg
38.6 kg
34.8 kg
NAVEE UT5 Max (EU Version Max. 25 km/h)
NAVEE XT5 Ultra (EU Version Max. 25 km/h)
NAVEE XT5 Pro (EU Version Max. 25 km/h)
Maxeffekt
2400 W
-
2200 W
Batteri
46.8 V 716.04 Wh
46.8 V 899 Wh
46.8 V 596.7 Wh
Max räckvidd
100 km (vid 15 km/h)
-
75 km (vid 15 km/h)
Max klättringsgrad
39%
-
-
Däck
12-tums all-terrain tubolösa däck
12-tums terrängdäck utan innerdäck
12-tums all-terrain tubelessdäck
Upphängningssystem
Dubbel hydraulisk upphängning
-
-
Bromssystem
Fram- och bakre skivbromsar + EABS
Fram- och bakre skivbromsar + EABS
Fram- och bakre skivbromsar + EABS
Max lastkapacitet
150 kg
-
150 kg
Snabb laddning
Ja
Ja
-
Nettovikt
34 kg
38.6 kg
34.8 kg
