NAVEE XT5 Pro

Max. Power 2200 W
Front & Rear Dual Damping Arm™ Suspension
Triple Braking System
Max. Gradient 32 %
Range up to 75 km

NAVEE XT5 Pro

Ready to go.

NAVEE XT5 Pro€899,00
Total €899,00
Product Details In the Box Technical Specifications Comparison FAQ Reviews

Front and Rear Dual-Side Damping Arm™ Suspension

Front and Rear Dual-Side Damping Arm™ Suspension

Triple Braking System

Triple Braking System

XT<strong>5</strong>

XT5 Pro

Max. Power
%
Max. Gradient
SmartRide

SmartRide

0 -inches
Tubeless Tyres

0 km
Max. Range

0 h
Fast Charging with a 10 A Charger**

Ride without Limits

Motor showcase
Unleash the Beast
Max. Power
Max. Gradient
%
It Accelerates from 6 to 25 km/h in
seconds

Patented Suspension with a Double-Damping Arm

The advanced front and rear suspension, with 60 mm of travel, ensures a smooth and comfortable ride even on uneven terrain and over deep potholes.
Patented Suspension with a Double-Damping Arm
0 mm
Overcome the Obstacles
It sinks into craters 10 cm deep and bounces back up straight away.

12-inch Tubeless Off-Road Tyres

The large 12-inch tubeless tyres offer excellent grip, puncture resistance and stability on mud, gravel, sand and rough terrain.
Motor showcase
Large
-inch
Tubeless Tyres for Off-Road Use

Triple Braking System

The front and rear disc brakes, together with the EABS system, ensure short braking distances and safe control in all weather conditions.
Brakes Left

mm

Front and Rear Disc Brakes

Instant braking, even in the rain or on muddy ground. The linear response ensures consistent control at any speed.

Long-Lasting Battery

Up to 90 km range on a single charge (at 15 km/h). An optional external battery extends the range to 136 km.
Motor showcase
Wh
Built-in Battery
For Battery Safety

Fast-Charging Technology

With the optional 10 A fast charger, the battery charges fully in just 1.25–1.5 hours, which is 50% faster than with standard charging.
Fast-Charging Technology
0 h
4. A Charger
0 h
10. A Charger

Smart and Safe Riding

TCS Traction Control

TCS Traction Control

For maximum stability on slippery surfaces

IPX6 Water Resistance

IPX6 Water Resistance

Can be used without any problems even in heavy rain

Apple Find My Integration

Apple Find My Integration

You can find your scooter at any time (even when it’s switched off)

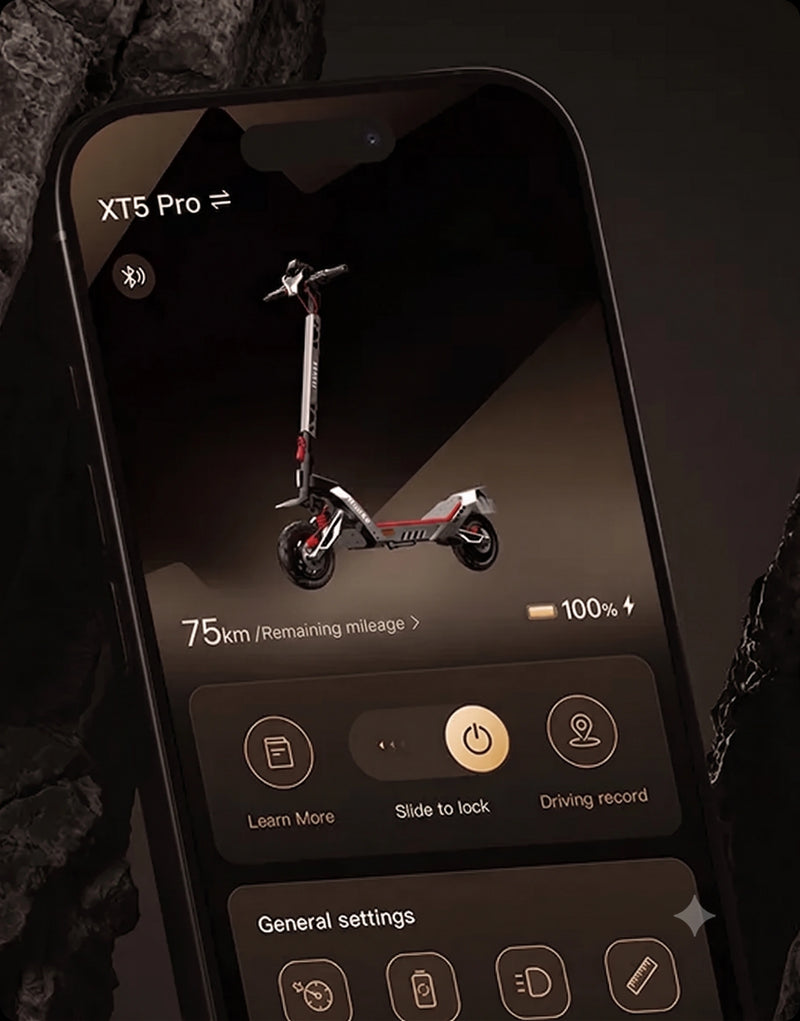

NAVEE Smart App

NAVEE Smart App

Real-time data, remote locking, custom settings and more

What's in the Box

NAVEE XT5 Pro

Charger

Screws

Allen Key

User Manual

Specifications

NAVEE XT5 Pro
NAVEE XT5 Ultra
GENERAL INFORMATION
Certification Model
XT5 Pro
Max. Load Capacity
150 kg
Max. Climbing Grade
32%
Factory-set Max. Speed
6 / 20 / 25 km/h
BATTERY
Battery Voltage
46.8 V
Battery Capacity
596.7 Wh
Battery Cell Type
18650 (13s6p)
Cell Capacity
12.75 Ah
Battery Weight
3400 g
PERFORMANCE
Rated Power
700 W
Max. Power
2200 W
Range (at 15 km/h)
75 km
Range (at 20 km/h)
60 km
Range (at 25 km/h)
50 km
CHARGING & FUNCTIONS
Charging Time (Standard)
5-6 h
Charging Time (Fast)
1.25-1.5 h (with 10 A charger)
Water Resistance Rating
IPX6
Bluetooth
Yes
Smart App
NAVEE App
Apple Find My
Yes (iOS)
DIMENSIONS & WEIGHT
Dimensions (Unfolded)
1360 × 627 × 1400 mm
Dimensions (Folded)
1360 × 627 × 655 mm
Deck Width
210 mm
Net Weight
34.8 kg
Gross Weight
41.5 kg
BRAKES & SUSPENSION
Braking System
Front Disc Brake + Rear Disc Brake + EABS
Suspension System
Patented Damping Arm™ Suspension System
LIGHTING & MISCELLANEOUS
Headlight
Auto-sensing 9 W
Brake Light
2 W
Turn Signals
1.6 W Directional Light
Display
5" LED Screen
GENERAL INFORMATION
Certification Model
XT5 Ultra
Max. Load Capacity
150 kg
Max. Climbing Grade
45%
Factory-set Max. Speed
6 / 20 / 25 km/h
BATTERY
Battery Voltage
46.8 V
Battery Capacity
899 Wh
Battery Cell Type
18650 (13s6p)
Cell Capacity
19.2 Ah
Battery Weight
4200 g
PERFORMANCE
Rated Power
1000 W (500 W × 2)
Max. Power
4400 W (2200 W × 2)
Range (at 15 km/h)
90 km
Range (at 22 km/h)
75.5 km
Range (at 25 km/h)
65 km
CHARGING & FUNCTIONS
Charging Time (Standard)
5–6 h
Charging Time (Fast)
2–3 h
Water Resistance Rating
IPX6
Bluetooth
Yes
Smart App
NAVEE App
Apple Find My
Yes (iOS)
DIMENSIONS & WEIGHT
Dimensions (Unfolded)
1360 × 627 × 1400 mm
Dimensions (Folded)
1360 × 627 × 655 mm
Deck Width
210 mm
Net Weight
38.6 kg
Gross Weight
45.6 kg
BRAKES & SUSPENSION
Braking System
Front Disc Brake + Rear Disc Brake + EABS
Suspension System
Damping Arm™ Patented Suspension System
LIGHTING & MISCELLANEOUS
Headlight
9 W Auto-sensing
Brake Light
2 W Brake Light
Turn Signals
1.6 W Turning Light
Display
LED Screen
Other Features
Daytime Light, Logo Lights, Ambient Lights, 10 A Flash Charger, Optional Battery, TCS, Bluetooth Unlock, BMS

Find Your Perfect Model

Max. Power
2200 W
2200 W × 2
1350 W
Battery
46.8 V 596.7 Wh
46.8 V 899 Wh
46.8 V 477.36 Wh
Max. Range
75 km (at 15 km/h)
90 km (at 15 km/h)
75 km (at 15 km/h)
Max. Climbing Grade
32%
45%
26%
Tires
12-inch All-Terrain Tubeless Tires
12-inch Off-road Tubeless Tires
10-inch Tubeless Tires
Suspension System
Damping Arm™ Suspension System
Damping Arm™ Suspension System
Front & Rear Damping Arm
Braking System
Front and Rear Disc Brakes + EABS
Front + Rear Disc Brakes + EABS
Front and Rear Disc Brakes + EABS
Max. Load Capacity
150 kg
150 kg
150 kg
Fast Charging
Yes
Yes
Yes
Net Weight
34.8 kg
38.6 kg
24.8 kg
Max. Power
2200 W
2200 W × 2
1350 W
Battery
46.8 V 596.7 Wh
46.8 V 899 Wh
46.8 V 477.36 Wh
Max. Range
75 km (at 15 km/h)
90 km (at 15 km/h)
75 km (at 15 km/h)
Max. Climbing Grade
32%
45%
26%
Tires
12-inch All-Terrain Tubeless Tires
12-inch Off-road Tubeless Tires
10-inch Tubeless Tires
Suspension System
Damping Arm™ Suspension System
Damping Arm™ Suspension System
Front & Rear Damping Arm
Braking System
Front and Rear Disc Brakes + EABS
Front + Rear Disc Brakes + EABS
Front and Rear Disc Brakes + EABS
Max. Load Capacity
150 kg
150 kg
150 kg
Fast Charging
Yes
Yes
Yes
Net Weight
34.8 kg
38.6 kg
24.8 kg

Frequently Asked Questions

Under ideal conditions (15 km/h, 75 kg, flat terrain), up to 75 km. Actual range depends on weight, terrain, temperature and riding style.

Yes. With the optional 10 A fast charger, the battery charges fully in just 1.25–1.5 hours. (The standard 4 A charger takes approximately 5–6 hours.)

A patented Damping Arm™ suspension system with dual damping arms at the front and rear, offering 60 mm of travel for excellent comfort on uneven terrain.

Yes. The large 12-inch tubeless off-road tyres offer excellent grip and stability on mud, gravel, sand and rough terrain.

Yes. The triple braking system (front and rear disc brakes + EABS) ensures short braking distances and reliable control in all weather conditions.

Yes. Thanks to its IPX6 water resistance, you can ride in heavy rain and splash through puddles without any problems.

Yes. The TCS traction control system prevents the wheels from spinning on wet roads or gravel surfaces. It is activated via the NAVEE App.
