mm
Front and Rear Disc Brakes
Instant stopping power, even in the rain or on muddy ground. The linear feedback ensures consistent control at any speed.

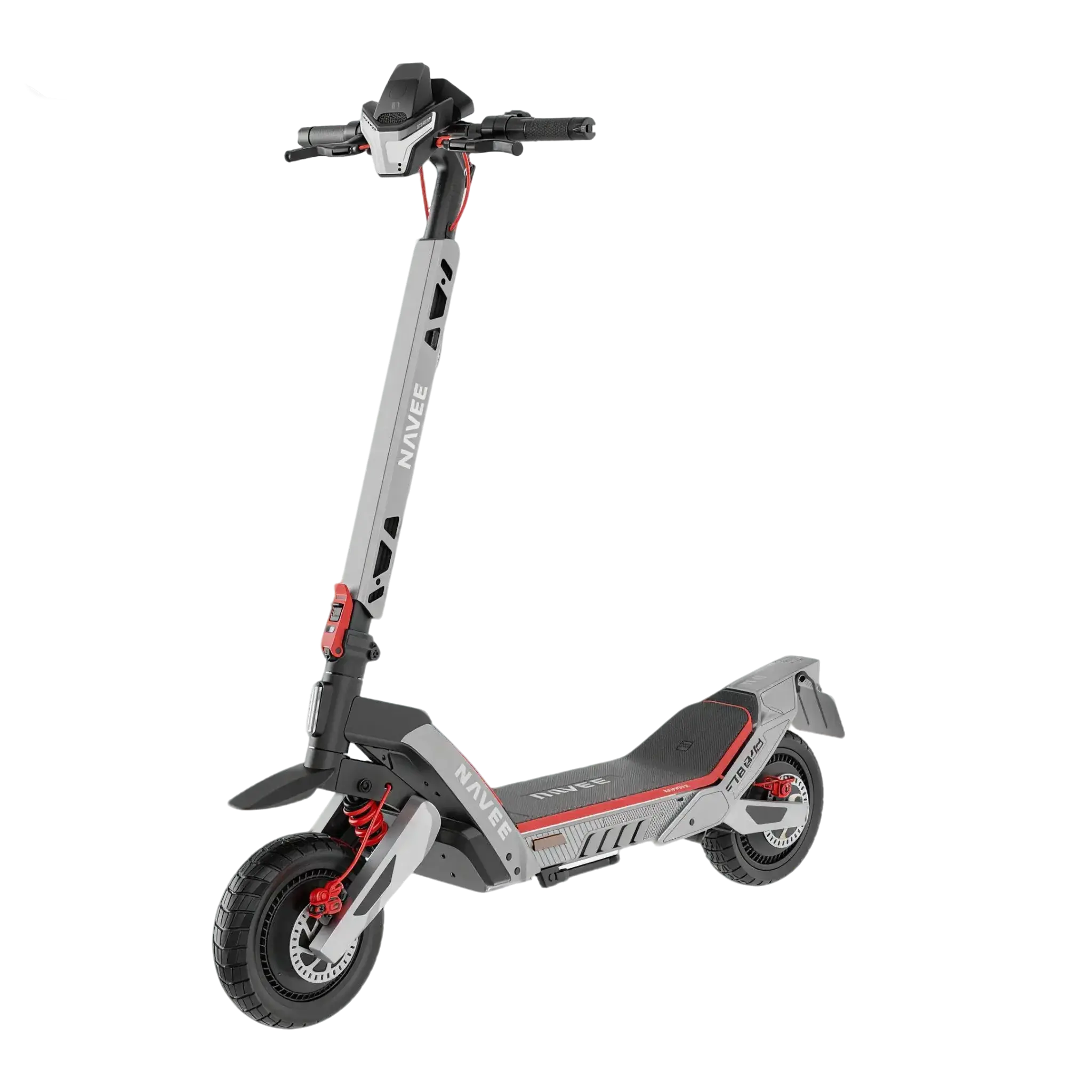

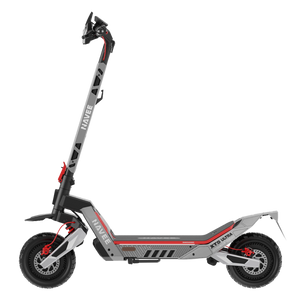

NAVEE XT5 Ultra
Essentials Pack
Ready to go.NAVEE XT5 Ultra
Ready to go.
NAVEE XT5 Ultra€1.499,00
Total
€1.499,00
NAVEE XT5 Ultra
NAVEE XT5 Ultra
Sale price€1.499,00
Front and Rear Dual-Side Damping Arm™ Suspension
Triple Braking System
XT5 Ultra
Max. Power
%
Max. Gradient
SmartRide
0
-inch
Tubeless Tyres
0
km
Range
0
h
Fast Charging with a 10 A charger**
Unleash Extreme Power
Unleash the Beast

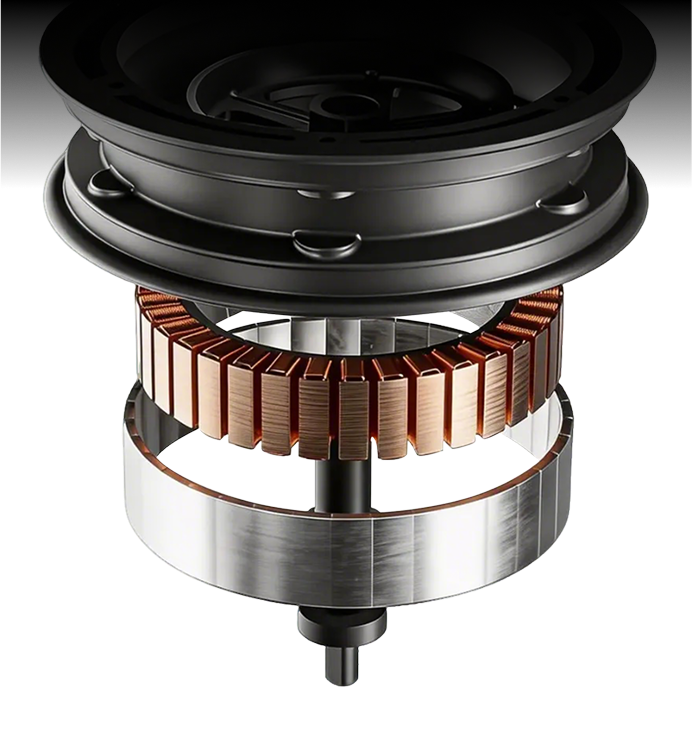

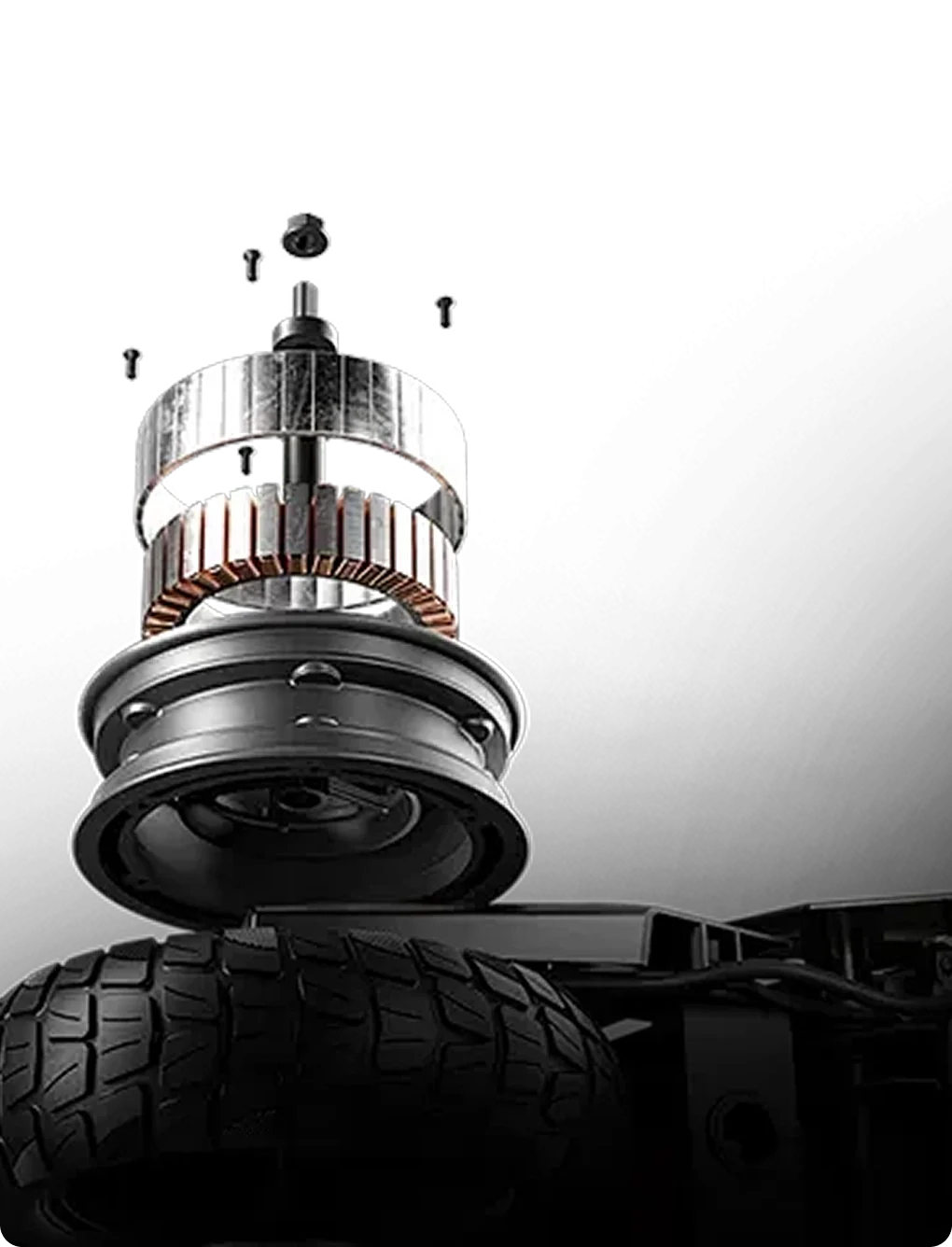

Motors with Max. Power
%
Max. Gradient

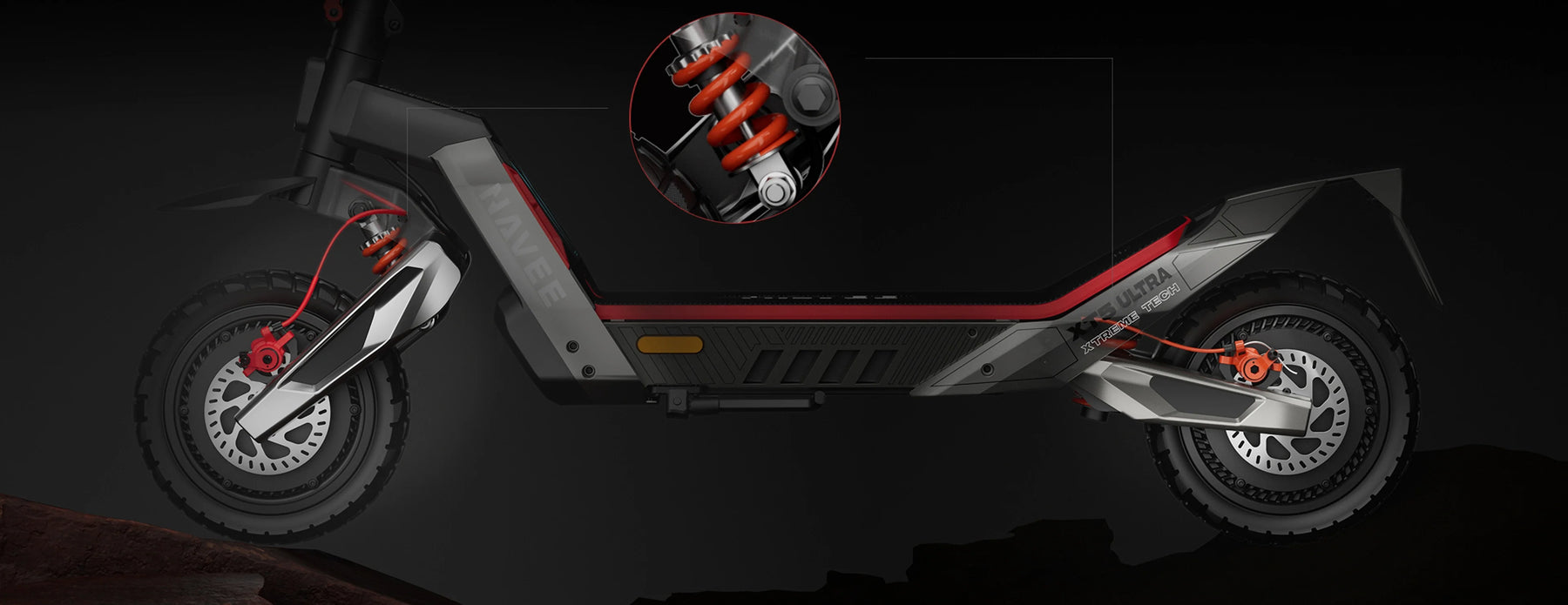

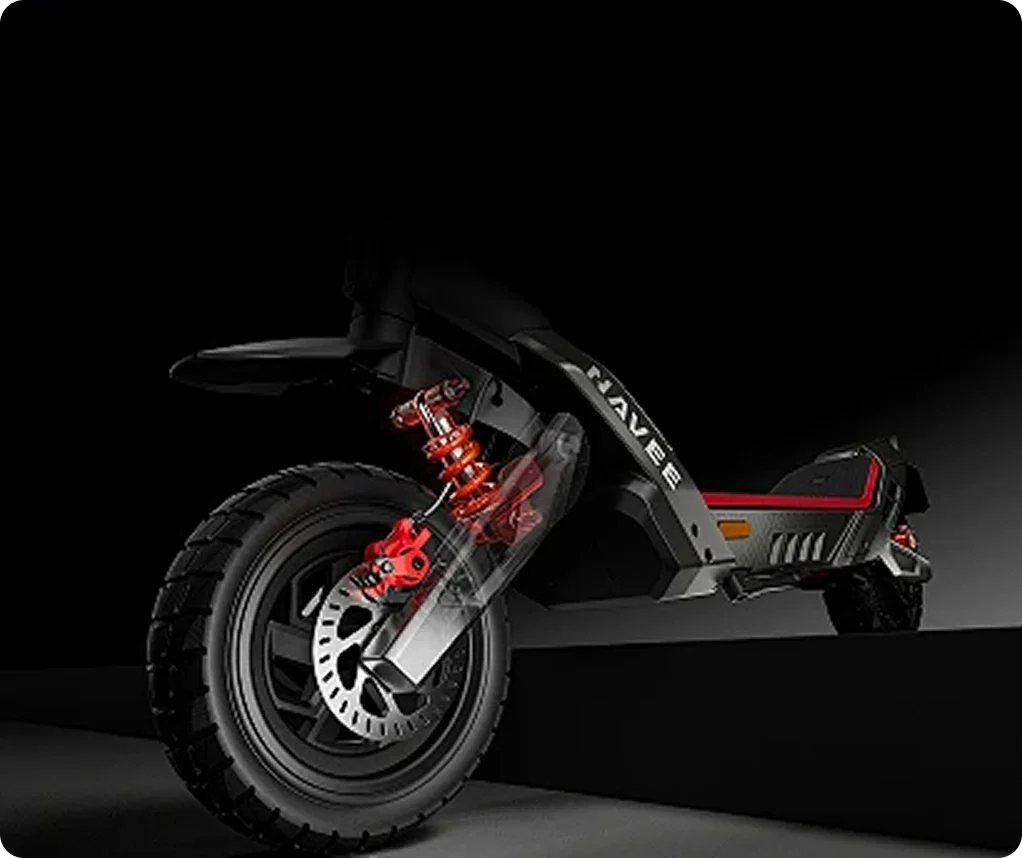

Patented Double-Damping Arm Suspension
The advanced front and rear suspension, with 60 mm of travel, ensures a smooth and comfortable ride even on uneven terrain and deep potholes.
0
mm
Devours Obstacles
It swallows up 10 cm deep craters and bounces straight back up again.

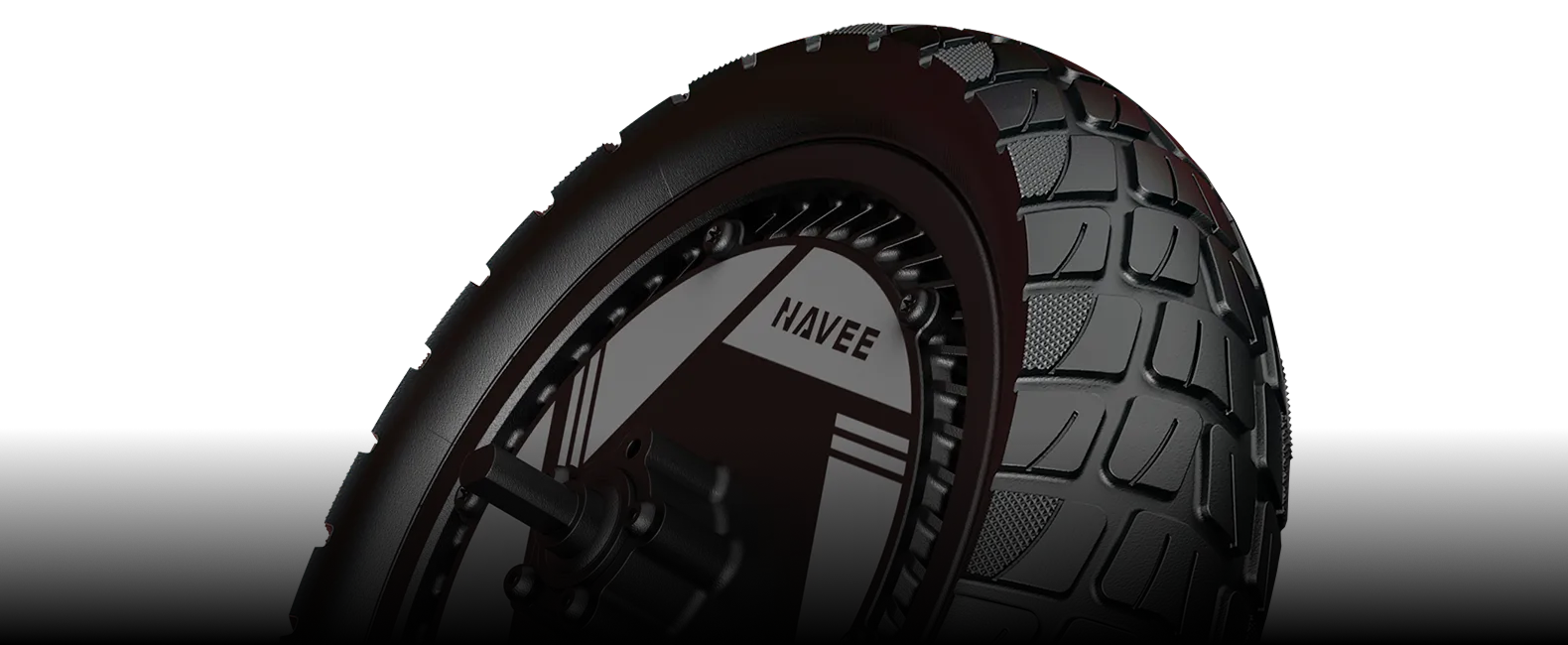

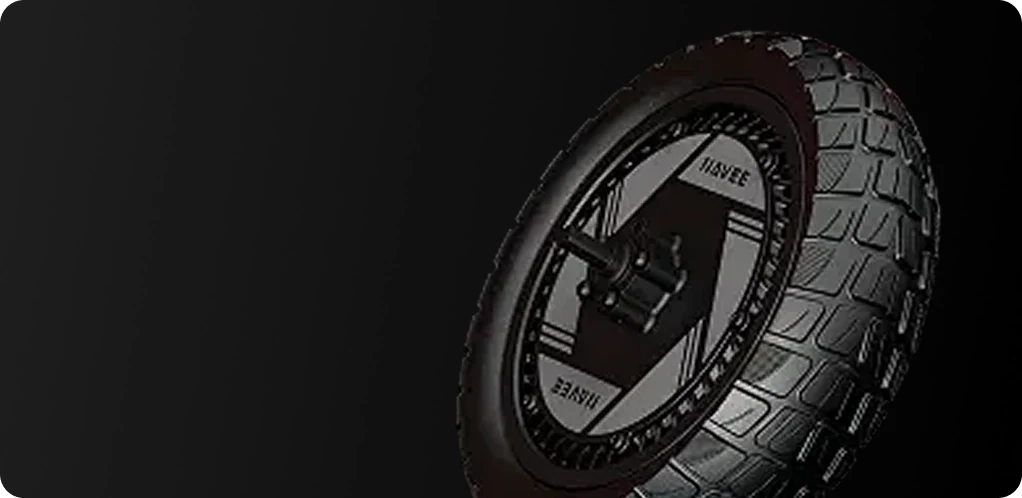

12-inch Off-Road Tubeless Tyres
Large, 12-inch tubeless tyres offer excellent grip, puncture resistance and stability on mud, gravel, sand and rough terrain.
Large
-inch
Off-Road Tubeless Tyres

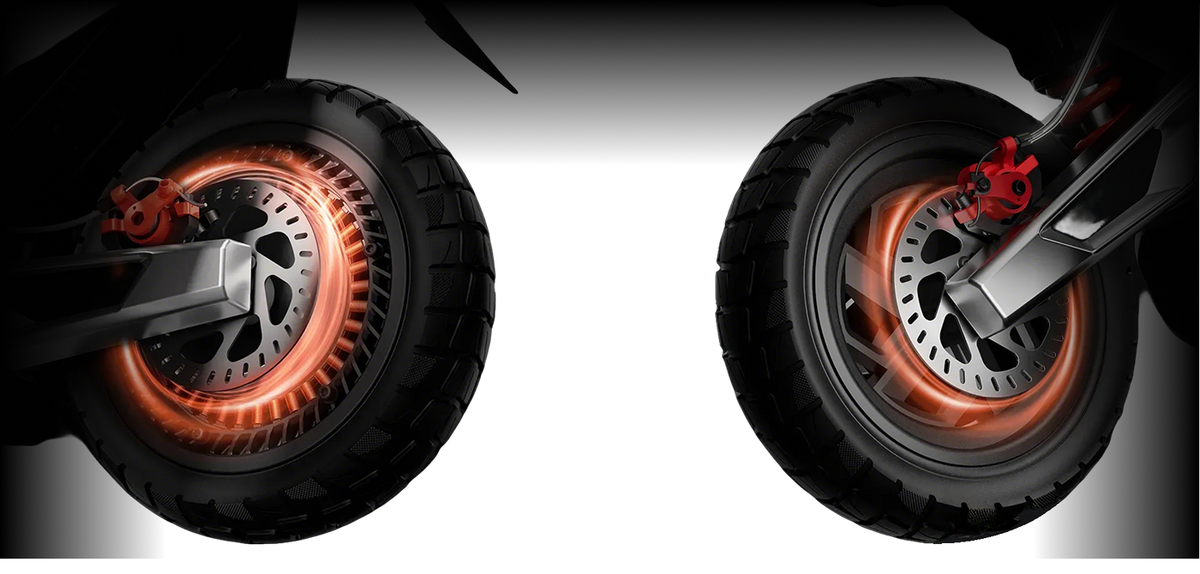

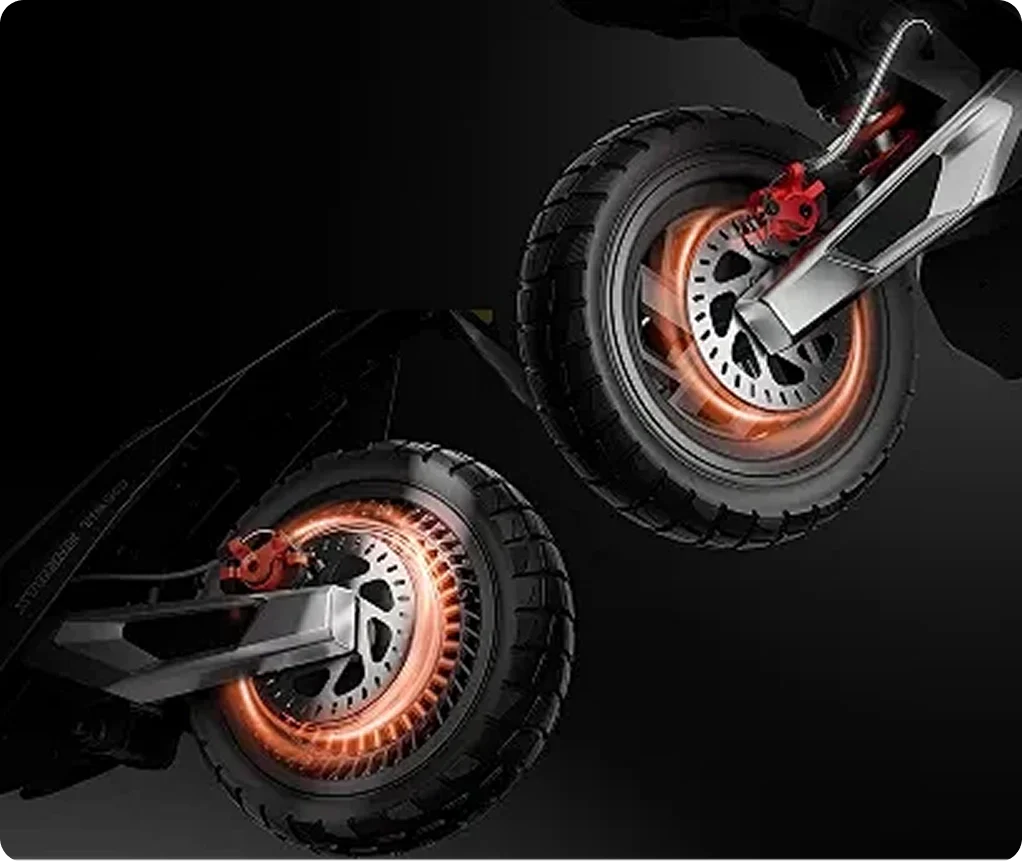

Triple Braking System
Front and rear disc brakes + EABS ensure short braking distances and safe control in all weather conditions.

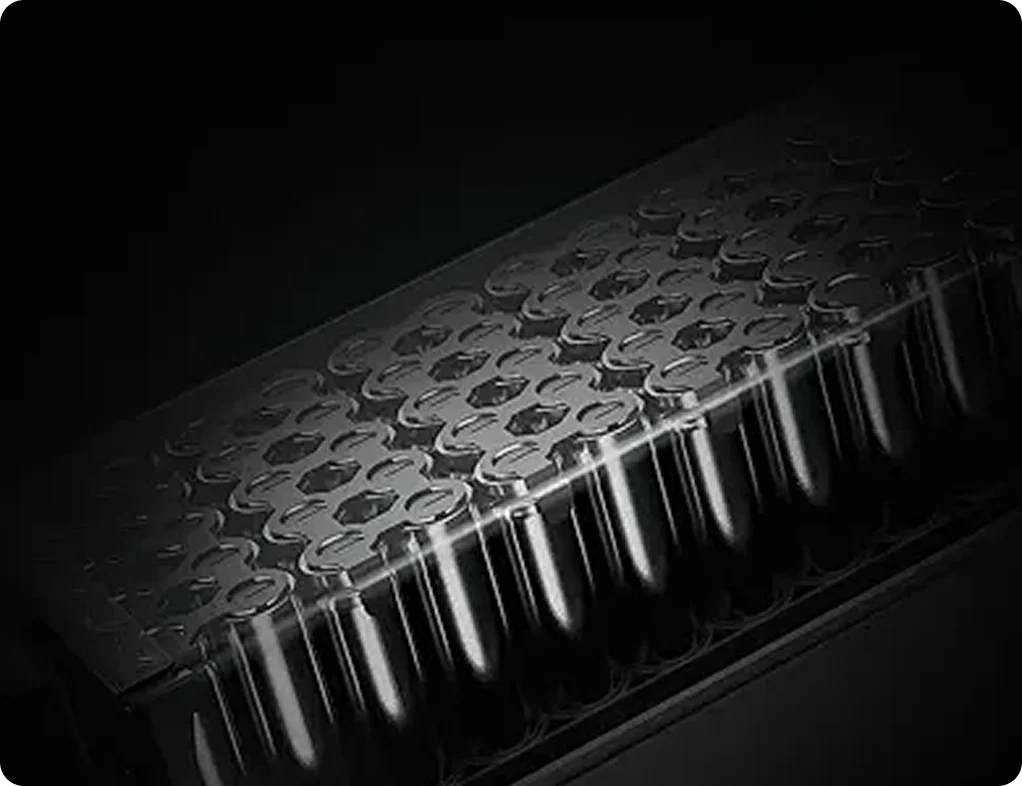

Long-Range Battery
Up to 90 km range on a single charge (at 15 km/h). An optional external battery extends the range to up to 136 km.
Wh
Built-in Battery
For Battery Safety

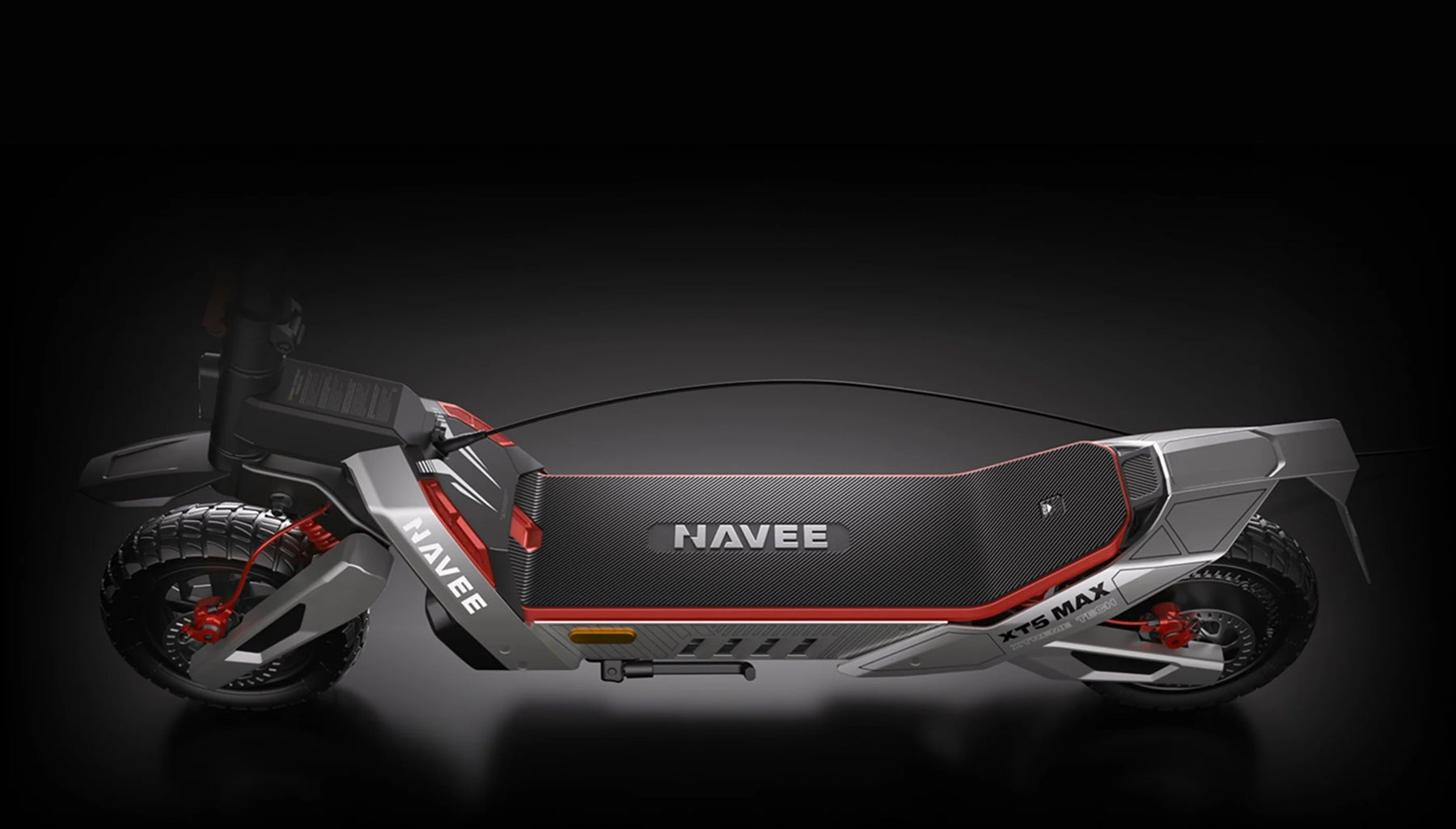

Fast-Charging Technology
With the optional 10A fast charger, the battery is fully charged in just 2–3 hours – 50% faster than with standard charging.
0
h
10 A Charger
≈
0
h
4 A Charger

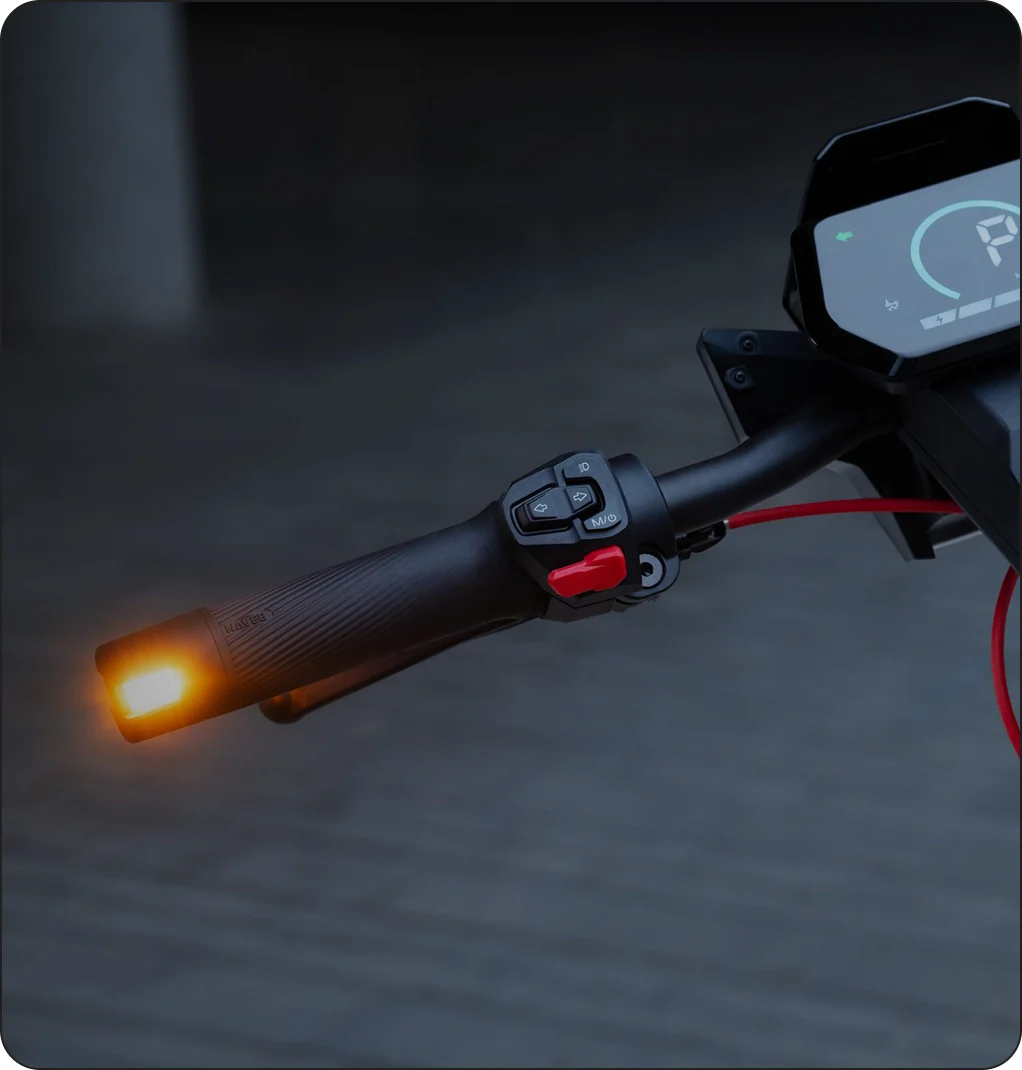

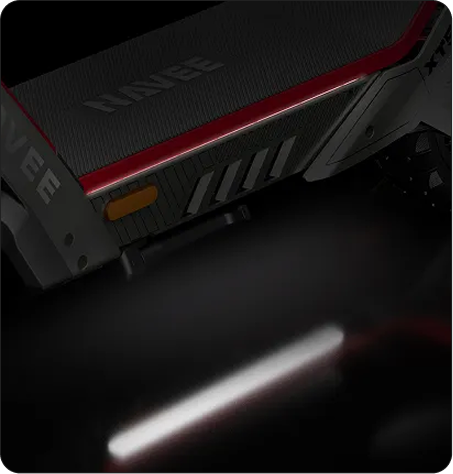

Lighting the Way with Style and Safety

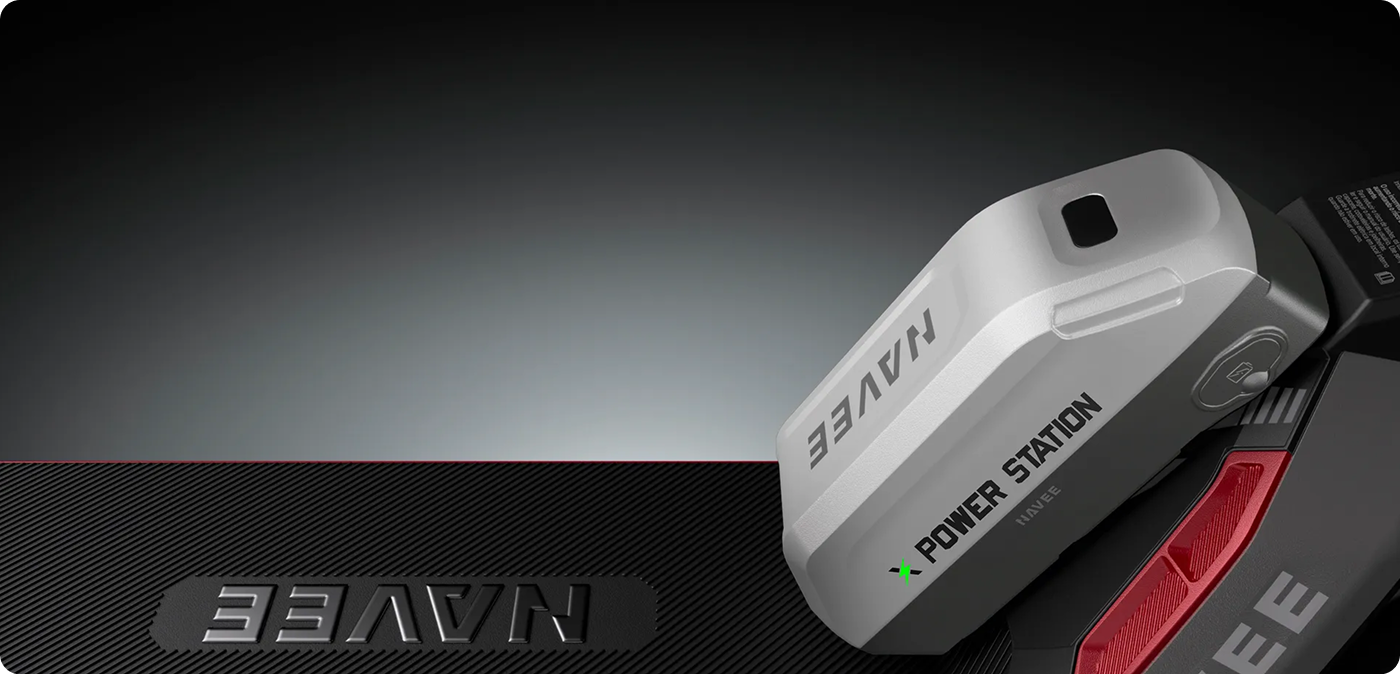

Expand Your Reach
0
km/h
Range at
0
km/h
Range at
Smart and Safe Riding
TCS Traction Control
For Maximum Stability on Slippery Surfaces
IPX6 Water Resistance
Can be Used without Any Problems, Even in Heavy Rain

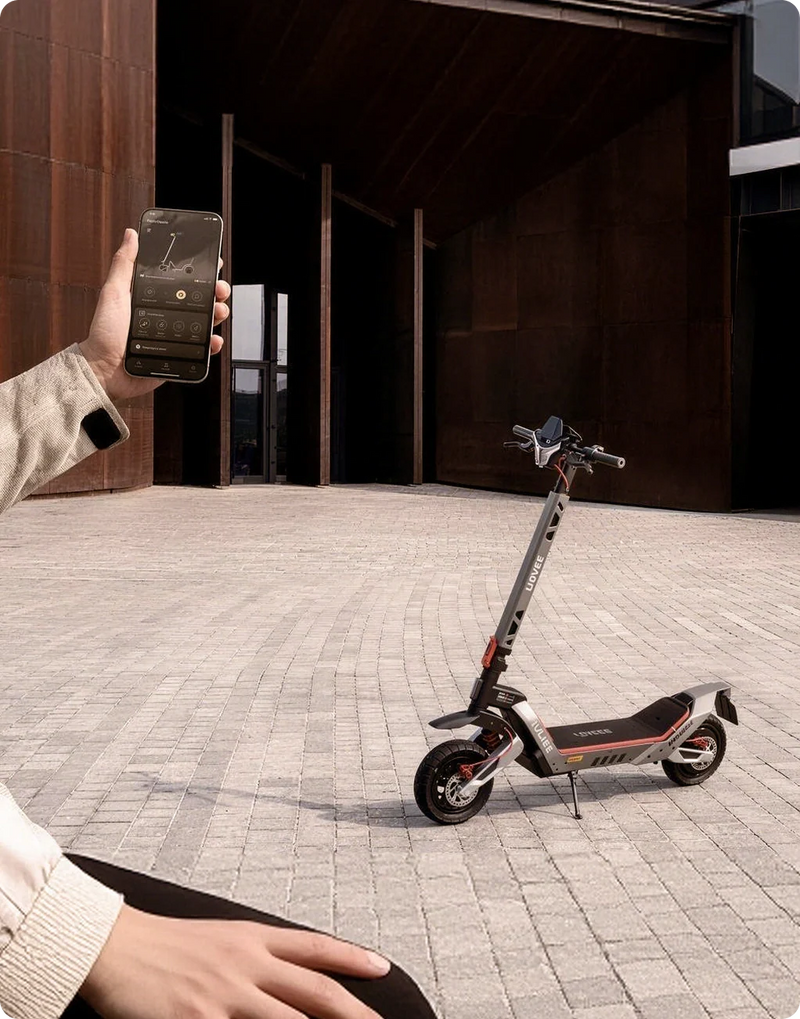

Apple Find My Integration
You Can Find Your Scooter at Any Time (Even When It’s Switched Off)

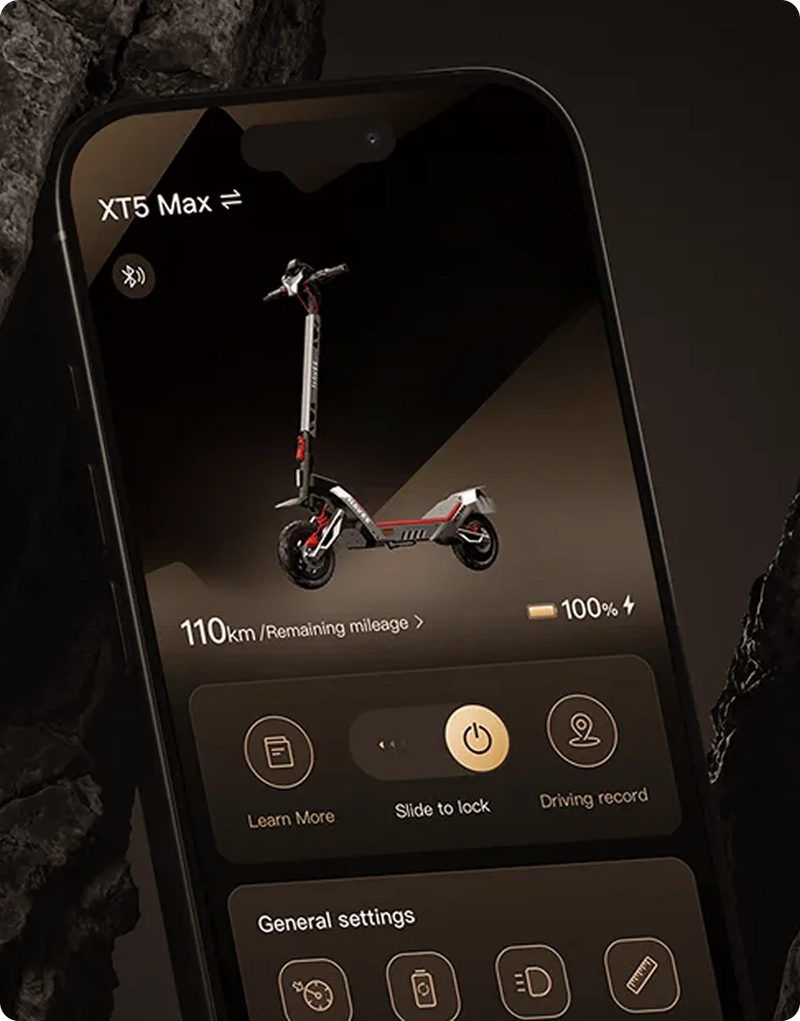

NAVEE Smart App
Real-Time Data, Remote Locking, Custom Settings and More
What's in the Box
NAVEE XT5 Ultra
Charger
Screws
Allen Key
User Manual
Specifications

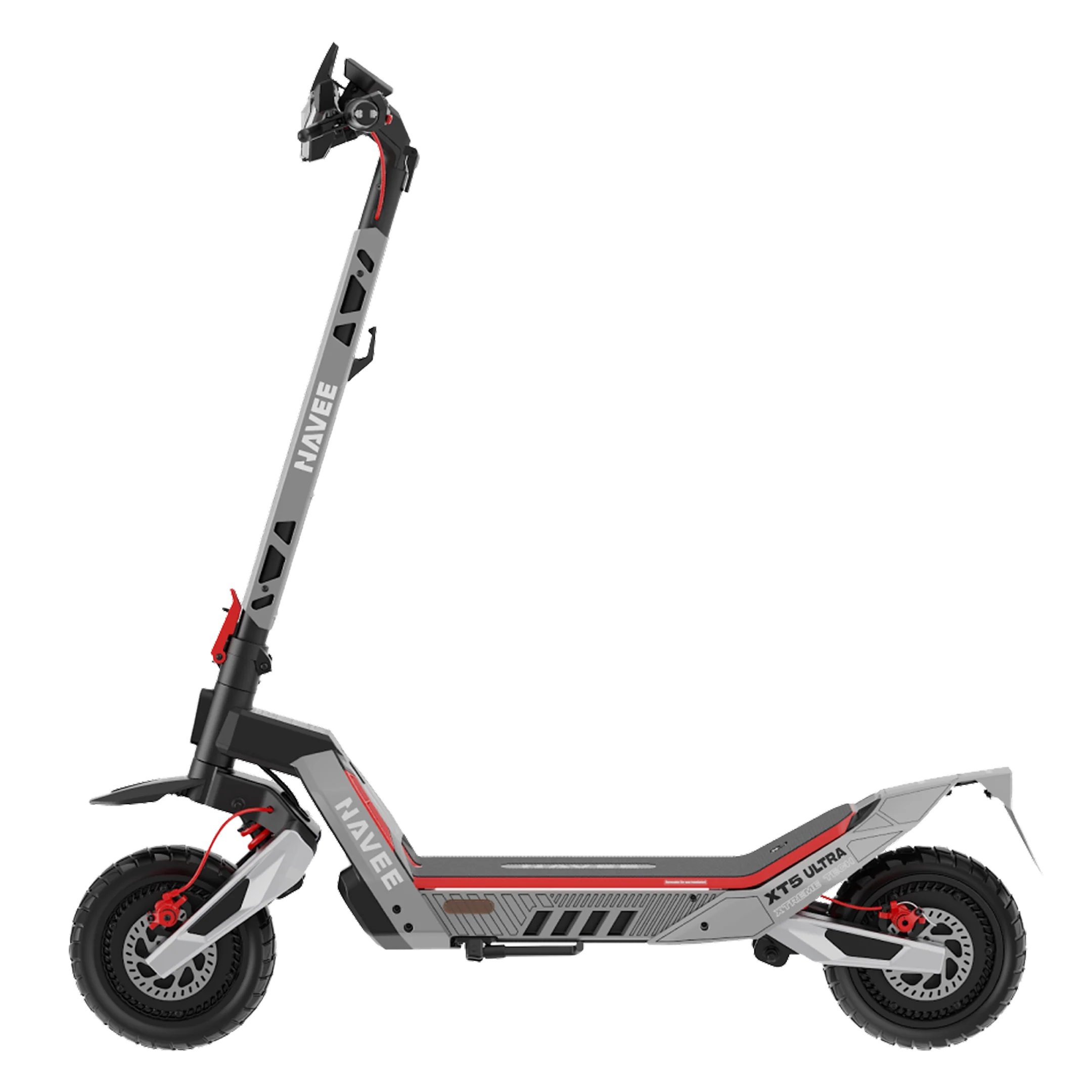

NAVEE XT5 Ultra
GENERAL INFORMATION
Certification Model
XT5 Ultra
Max. Load Capacity
150 kg
Max. Climbing Grade
45%
Factory-set Max. Speed
6 / 20 / 25 km/h
BATTERY
Battery Voltage
46.8 V
Battery Capacity
899 Wh
Battery Cell Type
18650 (13s6p)
Cell Capacity
19.2 Ah
Battery Weight
4200 g
PERFORMANCE
Rated Power
1000 W (500 W × 2)
Max. Power
4400 W (2200 W × 2)
Range (at 15 km/h)
90 km
Range (at 22 km/h)
75.5 km
Range (at 25 km/h)
65 km
CHARGING & FUNCTIONS
Charging Time (Standard)
5–6 h
Charging Time (Fast)
2–3 h
Water Resistance Rating
IPX6
Bluetooth
Yes
Smart App
NAVEE App
Apple Find My
Yes (iOS)
DIMENSIONS & WEIGHT
Dimensions (Unfolded)
1360 × 627 × 1400 mm

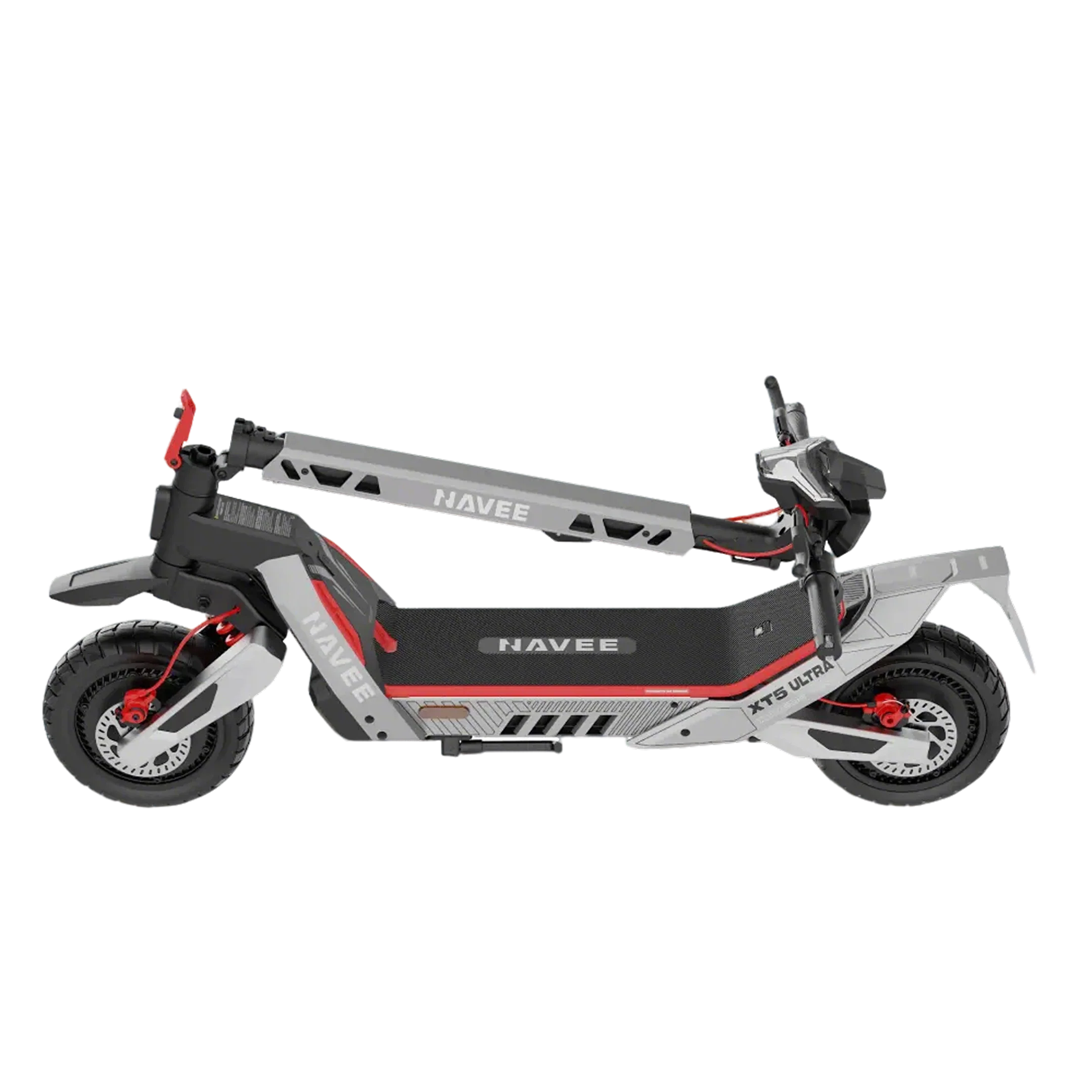

Dimensions (Folded)
1360 × 627 × 655 mm
Deck Width
210 mm
Net Weight
38.6 kg
Gross Weight
45.6 kg
BRAKES & SUSPENSION
Braking System
Front Disc Brake + Rear Disc Brake + EABS
Suspension System
Damping Arm™ Patented Suspension System
LIGHTING & MISCELLANEOUS
Headlight
9 W Auto-sensing

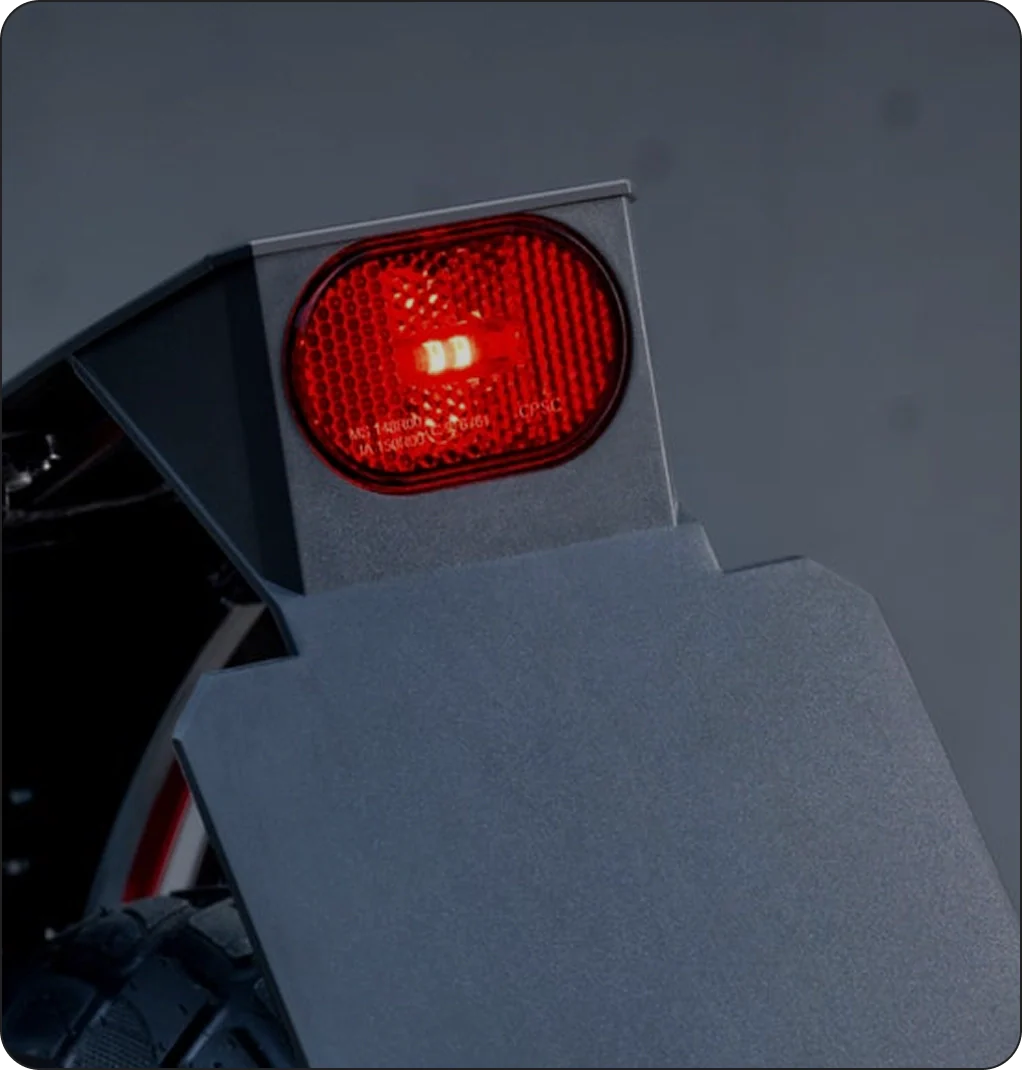

Brake Light
2 W Brake Light
Turn Signals
1.6 W Turning Light
Display
LED Screen
Other Features
Daytime Light, Logo Lights, Ambient Lights, 10 A Flash Charger, Optional Battery, TCS, Bluetooth Unlock, BMS
Find Your Perfect Model
NAVEE XT5 Ultra
NAVEE ST3
NAVEE GT5 Max
NAVEE GT5 Pro
NAVEE ST5 Pro
NAVEE G5
NAVEE G5 Pro
NAVEE XT5 Ultra
NAVEE N65i II
NAVEE GT3
NAVEE GT3 Pro
NAVEE GT3 Max
NAVEE ST3 Pro
NAVEE ST5 Pro
NAVEE ST3
NAVEE GT5 Max
NAVEE GT5 Pro
NAVEE ST5 Pro
NAVEE G5
NAVEE G5 Pro
NAVEE XT5 Ultra
NAVEE N65i II
NAVEE GT3
NAVEE GT3 Pro
NAVEE GT3 Max
NAVEE ST3 Pro
NAVEE GT5 Max
NAVEE ST3
NAVEE GT5 Max
NAVEE GT5 Pro
NAVEE ST5 Pro
NAVEE G5
NAVEE G5 Pro
NAVEE XT5 Ultra
NAVEE N65i II
NAVEE GT3
NAVEE GT3 Pro
NAVEE GT3 Max
NAVEE ST3 Pro
Max. Power
2200 W × 2
1350 W
1638 W
Battery
46.8 V 899 Wh
46.8 V 477.36 Wh
46.8 V 596.7 Wh
Max. Range
90 km (at 15 km/h)
75 km (at 15 km/h)
90 km (at 15 km/h)
Max. Climbing Grade
45%
26%
28%
Tires
12-inch Off-road Tubeless Tires
10-inch Tubeless Tires
10-inch Tubeless Tires
Suspension System
Damping Arm™ Suspension System
Front & Rear Damping Arm
Front Fork & Rear Damping Cylinder
Braking System
Front + Rear Disc Brakes + EABS
Front and Rear Disc Brakes + EABS
Front Drum Brake + Rear Disc Brake + Rear EABS
Max. Load Capacity
150 kg
150 kg
130 kg
Fast Charging
Yes
Yes
Yes
Net Weight
38.6 kg
24.8 kg
24.8 kg
NAVEE XT5 Ultra
NAVEE ST3
NAVEE GT5 Max
NAVEE GT5 Pro
NAVEE ST5 Pro
NAVEE G5
NAVEE G5 Pro
NAVEE XT5 Ultra
NAVEE N65i II
NAVEE GT3
NAVEE GT3 Pro
NAVEE GT3 Max
NAVEE ST3 Pro
NAVEE ST5 Pro
NAVEE ST3
NAVEE GT5 Max
NAVEE GT5 Pro
NAVEE ST5 Pro
NAVEE G5
NAVEE G5 Pro
NAVEE XT5 Ultra
NAVEE N65i II
NAVEE GT3
NAVEE GT3 Pro
NAVEE GT3 Max
NAVEE ST3 Pro
NAVEE GT5 Max
NAVEE ST3
NAVEE GT5 Max
NAVEE GT5 Pro
NAVEE ST5 Pro
NAVEE G5
NAVEE G5 Pro
NAVEE XT5 Ultra
NAVEE N65i II
NAVEE GT3
NAVEE GT3 Pro
NAVEE GT3 Max
NAVEE ST3 Pro
Max. Power
2200 W × 2
1350 W
1638 W
Battery
46.8 V 899 Wh
46.8 V 477.36 Wh
46.8 V 596.7 Wh
Max. Range
90 km (at 15 km/h)
75 km (at 15 km/h)
90 km (at 15 km/h)
Max. Climbing Grade
45%
26%
28%
Tires
12-inch Off-road Tubeless Tires
10-inch Tubeless Tires
10-inch Tubeless Tires
Suspension System
Damping Arm™ Suspension System
Front & Rear Damping Arm
Front Fork & Rear Damping Cylinder
Braking System
Front + Rear Disc Brakes + EABS
Front and Rear Disc Brakes + EABS
Front Drum Brake + Rear Disc Brake + Rear EABS
Max. Load Capacity
150 kg
150 kg
130 kg
Fast Charging
Yes
Yes
Yes
Net Weight
38.6 kg
24.8 kg
24.8 kg
